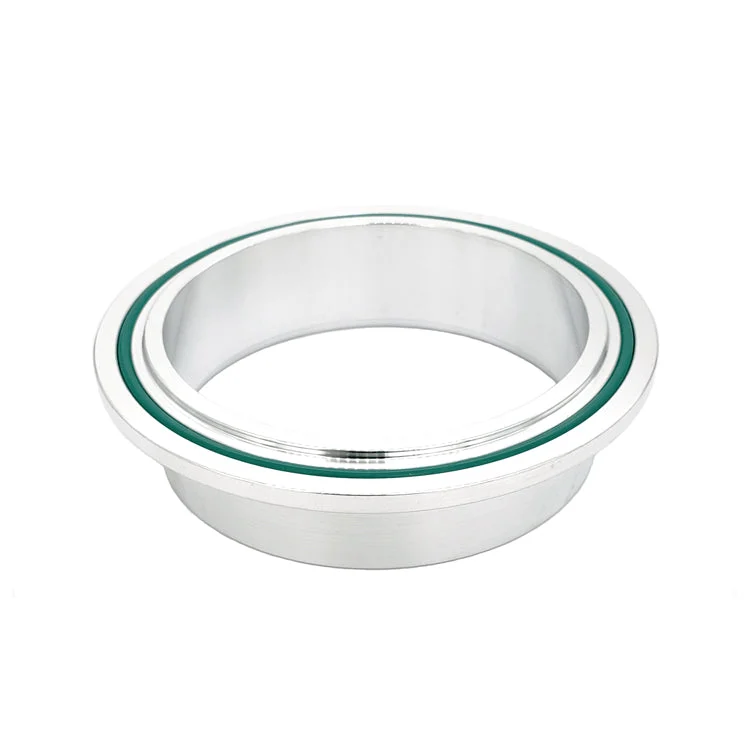

4.000″ V-Band Flange “Male + O-Ring” 6061 Aluminum

Description

Our Aluminum V-Band Flanges are precision CNC machined from solid 6061 Aluminum billet and are offered in two configurations: “Male + O-Ring” and “Female”. When combined with a compatible v-band clamp, our interlocking aluminum v-band flanges create an air-tight connection for a wide range of automotive applications.

FEATURES:

• CNC machined from solid 6061 Aluminum billet
• Male style seating surface, including O-Ring groove
• High Temperature O-Ring
• Counterbored to fit matching tube size
• Suitable for a wide range of uses, including automotive, diesel, and industrial applications

This V-Band Flange is a suitable replacement for, or compatible with, the following SKUs:

• 12070 — 4.000″ “Female” V-Band Flange 6061 Aluminum
• 12027 — 4.000″ V-Band Clamp (for Aluminum V-Band Flanges) 304 Stainless
• 12010 — 4.000″ V-Band Assembly Aluminum
• 22160  — 4.000″ “Female” V-Band Flange 304 Stainless
• 22128  — 4.000″ V-Band Clamp 304 Stainless – Quick Release

Our  V-Band Clamps  and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.

Are you looking for a replacement V-Band Flange for our Aluminum and Aluminum/Stainless Combination V-Band Assemblies? If so, this V-Band Flange is the right choice! Please note, this V-Band Flange will not work with our “Standard” style Stainless V-Band Flanges or V-Band Clamps (V-Band Flanges with SKUs starting with 2203xx and V-Band Clamps with SKUs starting with 2201xx are not compatible).

If you need assistance in finding a matching V-Band Clamp for an existing application please review our “How To Measure A V-Band Flange” information here: How to Measure a V-Band Flange .
