Description
Premium Suspension Upgrade. The Belltech 6 to 8-Inch Suspension Lift Kit with Trail Performance Struts, Shocks, and Anti-Sway Bars enhances your truck’s off-road capability and ride quality by increasing ground clearance and improving suspension travel. This system offers customizable front strut height adjustments in half-inch increments for dialing in the perfect stance while maintaining factory alignment and steering dynamics. It is designed to provide a confident and comfortable driving experience both on and off the road.

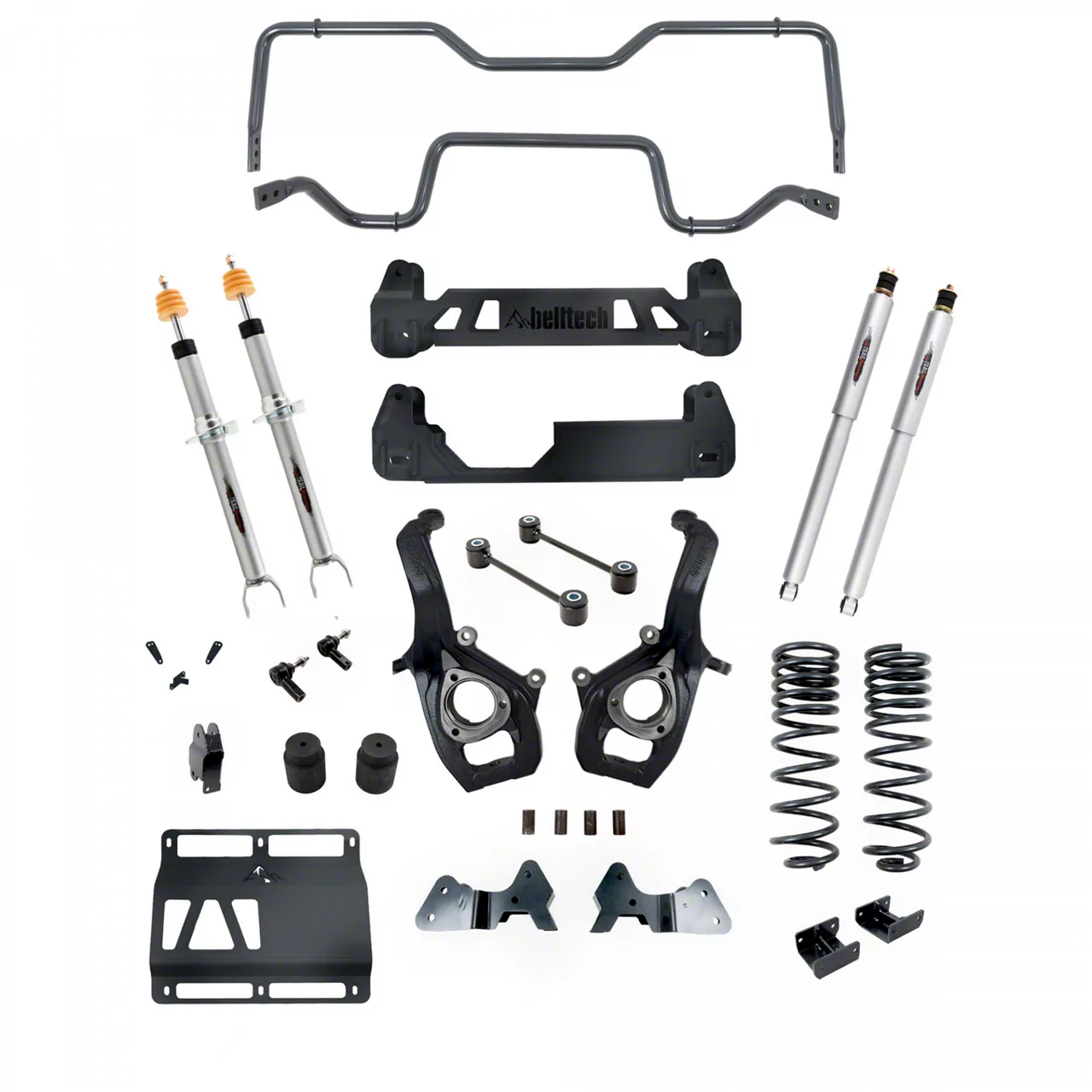

Construction and Appearance. Crafted from high-quality steel and aluminum components, each part is precision engineered and powder coated or finished for corrosion resistance and long-lasting durability. The kit includes laser-cut thick steel brackets, cold-formed anti-sway bars, stainless braided brake line extensions, and billet aluminum spacers, all manufactured in the USA with attention to strength and performance.
Installation. Installation is straightforward with direct bolt-on components requiring minimal cutting and no welding or drilling. Designed for easy fitment while retaining factory turning radius and suspension geometry, this kit is suitable for experienced enthusiasts and professional installers alike.
Warranty. This lift kit comes with a limited lifetime warranty, providing coverage and peace of mind.
Application. Specifically designed to fit 2019 through 2024 RAM 1500 2WD models without Air Ride or eTorque, excluding EcoDiesel engines and TRX trims. It maintains factory specifications while enhancing off-road performance and aesthetics.
Belltech 153713TPS
CA Residents: WARNING: Cancer and Reproductive Harm
- Precision Engineered Lift Kit System
- Patented Front Height Adjustable Trail Performance Struts
- Rear Trail Performance Twin Tube Shocks
- Customizable Front Struts In ½ Inch Increments
- Improves Ride Quality
- Preserves Factory Alignment Cams And Specifications
- Retains Factory Track Width
- Does Not Induce Bump Steer
- Includes Replacement Front Spindles For Strength And Durability
- Maintains Factory Turning Radius
- Includes ¼ Inch Thick Laser-Cut Skid Plate
- Features Cold-Formed Steel 1 3/8 Inch Anti-Sway Bar
- Includes Durable Outer Tie Rods
- No Replacement Ball Joints Needed
- Includes ¼ Inch Thick High-Clearance Crossmembers
- Front Stainless Steel Braided Brake Line Extensions
- Billet Aluminum Driveshaft Spacer
- Rear Control Arm Drop Down Bracket Maintains OE Anti-Squat
- Rear Progressive Rate Coil Springs Included
- Brake Line Relocation Brackets For Rear
- Rear 1 1/8 Inch Anti-Sway Bar With Extended Length Links
- Rear Belltech Twin-Tube Custom-Tuned Trail Performance Shocks
- Rear Bump Stop Extensions
- Rear Track Bar Relocation Bracket To Center Axle
- Easy To Install Direct Bolt-On Kit
- Minimal Cutting No Welding Needed
- Limited Lifetime Warranty Included
- Wheel And Tire Combinations Supported Up To 35×12.5
- Fits 2019-2024 2WD RAM 1500 without Air Ride & eTorque, Excluding EcoDiesel and TRX
| Brand | Belltech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 40 Inch |
| Brand of Shocks | Belltech |
| Rear Lift Type | Coil Spring |
