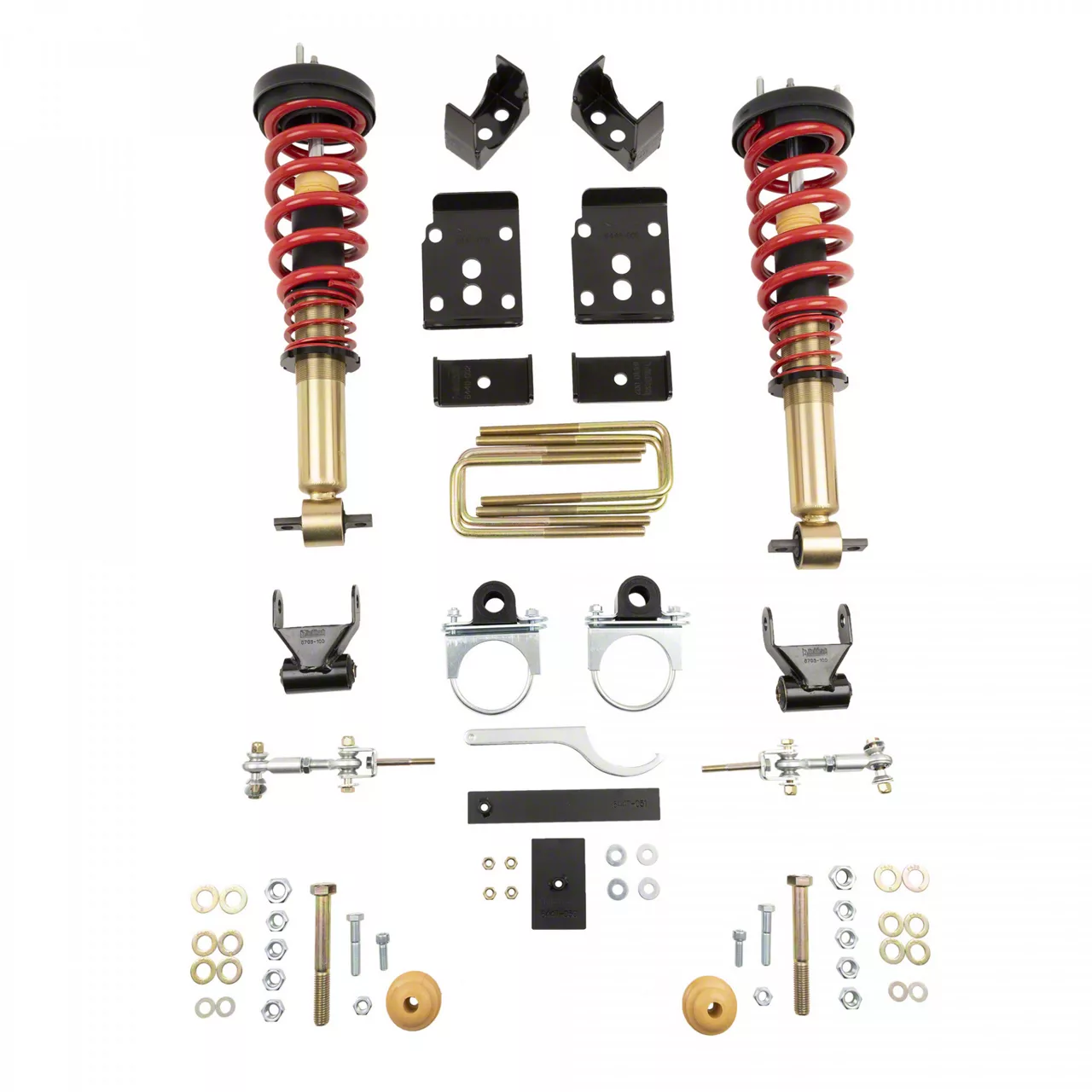

Belltech Height Adjustable Lowering Coil-Over Kit for 1 to 3-Inch Drop and 5.50-Inch Rear Drop (15-20 F-150, Excluding Raptor)

Description

Performance Suspension Upgrade. The Belltech Height Adjustable Lowering Coil-Over Kit provides a 1 to 3-inch drop at the front and a 5.5-inch drop at the rear, enhancing vehicle handling by lowering the truck for improved stability and a sleek stance. It replaces the original suspension with adjustable coilovers up front and a flip kit with shocks at the rear, delivering superior ride quality and a reduced center of gravity.

Construction and Appearance. This kit features heavy-duty, cold-formed tensile steel springs with a durable powder-coated finish. It includes large diameter damper bodies designed for consistent damping performance. The coilovers incorporate progressive rate polymer bump stops and factory-style top mounts, with all components engineered to resist corrosion and wear.

Installation. Installation requires moderate mechanical skill but no cutting or drilling. The kit includes bolt-on hardware and a high-quality flip kit for easy rear axle repositioning. Front coilovers mount directly to factory mounting points, streamlining the upgrade process.

Application. Engineered to fit 2015 through 2020 Ford F-150 models in both 2WD and 4WD configurations, excluding the Raptor variant.

Belltech 1000SPC

CA Residents: WARNING: Cancer and Reproductive Harm

• Fits 2015-2020 Ford F-150 Two Wheel Drive and Four Wheel Drive Models, Excluding Raptor
• Front Height Adjustable Coilovers Offering One To Three Inch Lowering
• Rear Lowering Of Five And A Half Inches Using Included Bolt-On Flip Kit
• Large 2.4 Inch Diameter Front Damper Body with 35mm Independent Rebound and Compression Valves
• Rear 2 Inch Diameter Damper Body with 35mm Independent Rebound and Compression Valves
• Powder Coated Cold Formed Tensile Steel Springs for Durability and Corrosion Resistance
• Progressive Rate Polymer Open Cell Bump Stops Enhance Ride Comfort
• Easy Installation with Factory Top Mounts for Front Coilovers
• Includes High-Quality Bolt-On Flip Kit for Rear Axle Repositioning
• Enhanced Performance and Handling with Reduced Body Roll
• Improved Ride Quality and Lower Center of Gravity for Better Stability
