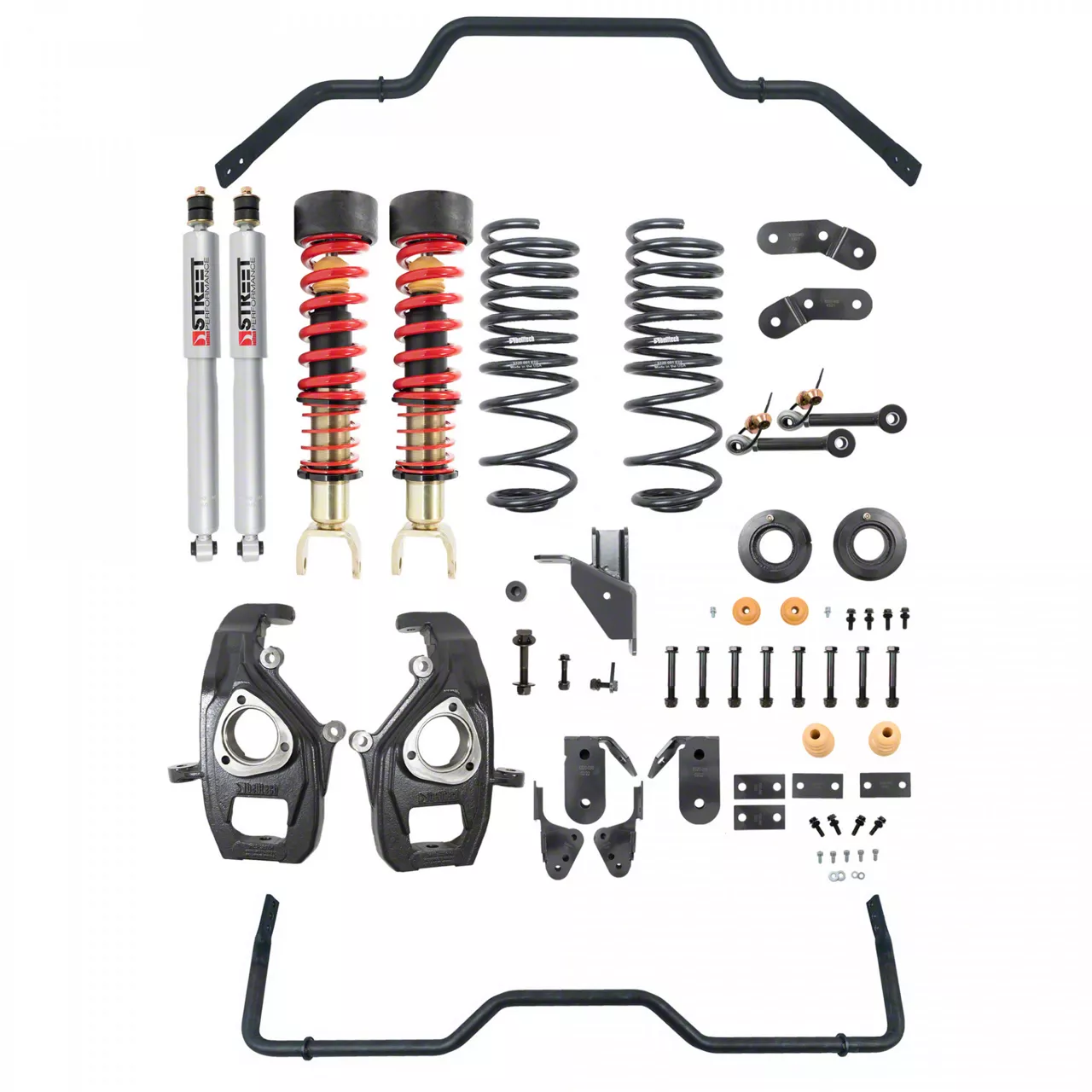

Belltech Lowering Kit with Coil-Overs, Street Performance Shocks and Anti-Sway Bars for Factory 20-Inch Wheels; 3 to 4-Inch Front / 4 to 5-Inch Rear (19-24 RAM 1500 w/o Air Ride, Excluding TRX)

Description

Performance Suspension Upgrade. The Belltech Lowering Kit features coil-overs, street performance shocks, and anti-sway bars designed for factory 20-inch wheels, providing 3 to 4 inches of front lowering and 4 to 5 inches of rear lowering. This kit enhances the vehicle’s stance and handling by lowering the center of gravity and offers superior ride quality with customizable height adjustments to suit driver preferences for road or street use.

Construction and Appearance. High-quality cold-formed steel coil springs with a durable powder coat resist rust and wear. The coilovers include large diameter preset dampers with independent rebound and compression valves for precise damping performance. Components such as drop spindles and sway bars are crafted from strong cold-formed steel and finished with a rugged powder coat for durability and a professional look.

Installation. Installation requires moderate mechanical skills and no drilling. The kit utilizes existing mounting points and includes detailed instructions to facilitate installation while maintaining factory suspension geometry.

Application. Designed exclusively for 19-24 RAM 1500 models without Air Ride suspension, excluding the TRX variant. This kit is incompatible with factory 22” wheels equipped with larger bearing assemblies identified by build codes WPM or WPZ. Proper wheel-to-spindle clearance should be verified prior to installation.

Belltech 1062HK

CA Residents: WARNING: Cancer and Reproductive Harm

• Customizable Front Lowering Options of -3” or -4”
• Customizable Rear Lowering Options of -4” or -5”
• Large Bodied 2.4” (60mm) Preset Front Street Performance Dampers
• Large Bodied 2.2” (55mm) Preset Rear Street Performance Shocks
• 35mm Independent Rebound and Compression Valves
• Robust Drop Spindles
• 1-3/8” Diameter Solid Front Sway Bar and 13/16” Diameter Hollow Rear Sway Bar
• Adjustable Length Heim Joint End Links
• Preserves OE Ride Quality and Suspension Geometry
• Engineered to Exemplify Ride Quality and Performance with a Lowered Center of Gravity
• Fits 19-24 RAM 1500 without Air Ride, Excluding TRX. Will Not Fit OEM 22” Wheels Due to Larger Wheel Bearing Assembly. Check for Code WPM or WPZ on Your RAM to See if This Applies to You. Verify Wheel to Spindle Clearance During Installation, as Not All OEM Wheels Have the Same Inner Barrel Dimensions.
