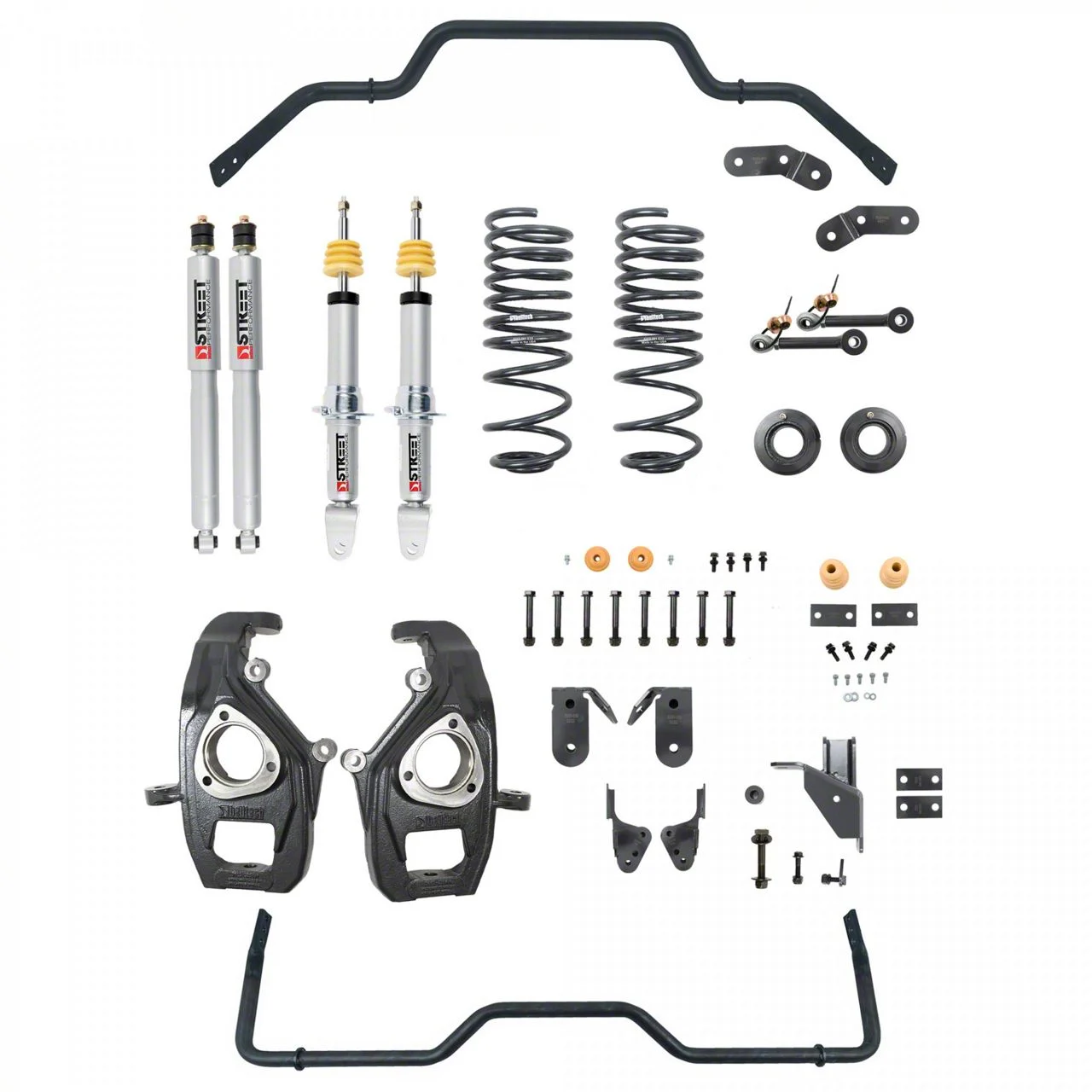

Belltech Lowering Kit with Street Performance Struts, Shocks and Anti-Sway Bars for Factory 20-Inch Wheels; 2-Inch Front / 3 to 4-Inch Rear (19-24 RAM 1500 w/o Air Ride, Excluding TRX)

Description

Performance Enhancement. The Belltech Lowering Kit with Street Performance improves the stance and handling of your truck by lowering the front by 2 inches and the rear by 3 to 4 inches. Designed to reduce the vehicle’s center of gravity, this kit provides a more aggressive appearance and enhanced driving dynamics while maintaining factory suspension geometry and ride comfort.

_x000D__x000D_

Construction and Appearance. The kit includes ductile iron drop spindles at the front and large 2.2-inch damper body shocks at the rear with 35mm rebound and compression valves for precise damping. Rear coil springs are cold-formed steel with a durable powder coat finish to resist rust and wear. Solid steel spacers and sway bars are powder coated for durability and an aggressive look.

_x000D__x000D_

Installation. Installation is moderately complex and designed to be straightforward for experienced installers, requiring no drilling. The kit includes all necessary components for proper suspension integration and geometry correction.

_x000D__x000D_

Application. Designed specifically for 2019 to 2024 RAM 1500 trucks without air ride suspension, excluding the TRX model. This kit is not compatible with OEM 22-inch wheels that require a larger wheel bearing assembly and fits models equipped with 20-inch wheels or smaller.

Belltech 1060SPS

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Precision and performance are the objectives for the new line of Belltech 2019+ RAM 1500 lowering kits

_x000D_

• Kit lowers the front of the vehicle 2 inches and the rear 3 to 4 inches to improve appearance and lower center of gravity

_x000D_

• Front suspension includes strong ductile iron drop spindles for full 2-inch lowering without spoiling factory suspension geometry

_x000D_

• Rear features large 2.2-inch damper bodies with 35mm independent rebound and compression valves street performance shocks

_x000D_

• Replacement coil springs and 1-inch spacers included for adjustable rear lowering

_x000D_

• Roll center correction bracket keeps axle centered to maintain proper suspension geometry

_x000D_

• Adjustable end link assembly preserves correct anti-sway bar angles

_x000D_

• Includes progressive rate polymer open-cell bump stop

_x000D_

• Front 1-3/8 inch solid and rear 13/16 inch hollow sway bars made from cold-formed steel

_x000D_

• Preserves OEM ride quality and suspension geometry

_x000D_

• Engineered to exemplify ride quality and performance

_x000D_

• Does not fit OEM 22 inch wheels with larger wheel bearing assembly

_x000D_

• Fits 2019-2024 RAM 1500 without air ride, excluding TRX

_x000D_

Brand	Belltech
Lowering Kit Includes Shocks	Shocks Included
Lowering Kit Estimated Drop	2.0F / 4.0R
