Description

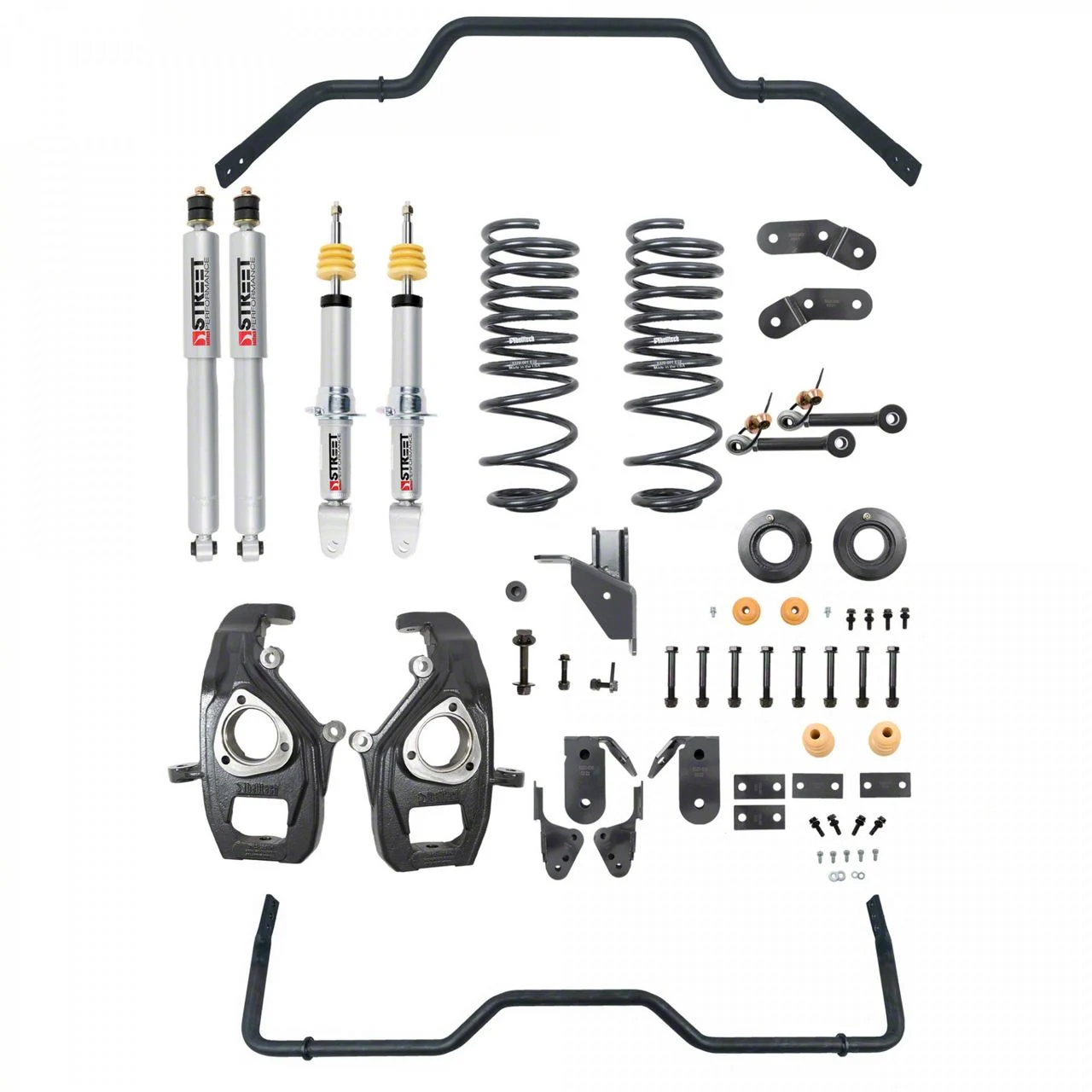

Complete Suspension Upgrade. The Belltech Lowering Kit with Street Performance Struts, Shocks, and Anti-Sway Bars for Factory 20-Inch Wheels; 3 to 4-Inch Front / 4 to 5-Inch Rear is designed to lower your RAM 1500’s stance for improved aesthetics and handling. This kit provides adjustable front and rear lowering options, lowering the center of gravity to enhance vehicle stability while maintaining ride quality suitable for street performance.
Construction and Appearance. Crafted from high-quality cold-formed steel components, the kit features powder-coated finishes for superior corrosion resistance and longevity. The front struts and rear shocks have large-diameter damper bodies with independent rebound and compression valves for precise damping. Included parts such as durable steel drop spindles, coil springs, spacers, and adjustable sway bars are engineered to maintain OEM suspension geometry.
Installation. Installation requires moderate mechanical skill, with a bolt-on design ensuring no complicated drilling. It is recommended to verify proper wheel clearance due to variation in OEM wheel inner dimensions.
Warranty. This lowering kit comes with a limited warranty to ensure quality and durability under normal use.
Application. Specifically engineered for 2019 to 2024 RAM 1500 models without Air Ride suspension, excluding the TRX variant. It is not compatible with OEM 22-inch wheels due to differences in the wheel bearing assembly and requires confirmation of fitment with 20-inch OEM wheels to avoid interference.
Belltech 1062SPS
CA Residents: WARNING: Cancer and Reproductive Harm
- Precision and Performance Are the Objectives for the New Line of Belltech 2019+ RAM 1500 Lowering Kits
- Kit Lowers the Front of Your Vehicle -3” to -4” and the Rear -4” or -5” to Improve Appearance and Lower Center of Gravity
- Front Suspension Includes Robust Street Performance Struts with 2” Damper Body and 35mm Independent Rebound and Compression Valves
- Patented Ring Spacer Design Offers Height Adjustability from 1” to -3” in Half Inch Increments
- Spindles Included to Lower Front Wheels Additional -2” by Bringing Wheels’ Mounting Position Up Higher
- Rear Features Street Performance Shocks with 2.2” Damper Bodies and 35mm Independent Rebound and Compression Valves
- Replacement Coil Springs and 1” Spacers Included for Rear Lowering; Spacer Removal Allows for Full -5” Drop
- Roll Center Correction Bracket Keeps Axle Centered to Maintain Suspension Geometry
- Adjustable End Link Assembly Preserves Anti-Sway Bar Angles
- Progressive Rate Polymer Open-Cell Bump Stop Included to Accommodate New Ride Height
- 1-3/8” Diameter Solid Front Sway Bar and 13/16” Diameter Hollow Rear Sway Bar with Two Settings of Adjustability
- Engineered to Exemplify Ride Quality and Performance with Lowered Center of Gravity
- Only Fits Models with 20” OEM Wheels; Will Not Fit OEM 22” Wheels Due to Larger Wheel Bearing Assembly
- Check Wheel to Spindle Clearance During Installation; Not All OEM Wheels Have the Same Inner Barrel Dimensions
- Fits 2019-2024 RAM 1500 Without Air Ride, Excluding TRX
| Brand | Belltech |
| Lowering Kit Includes Shocks | Shocks Included |
| Lowering Kit Estimated Drop | 4.0F / 5.0R |
