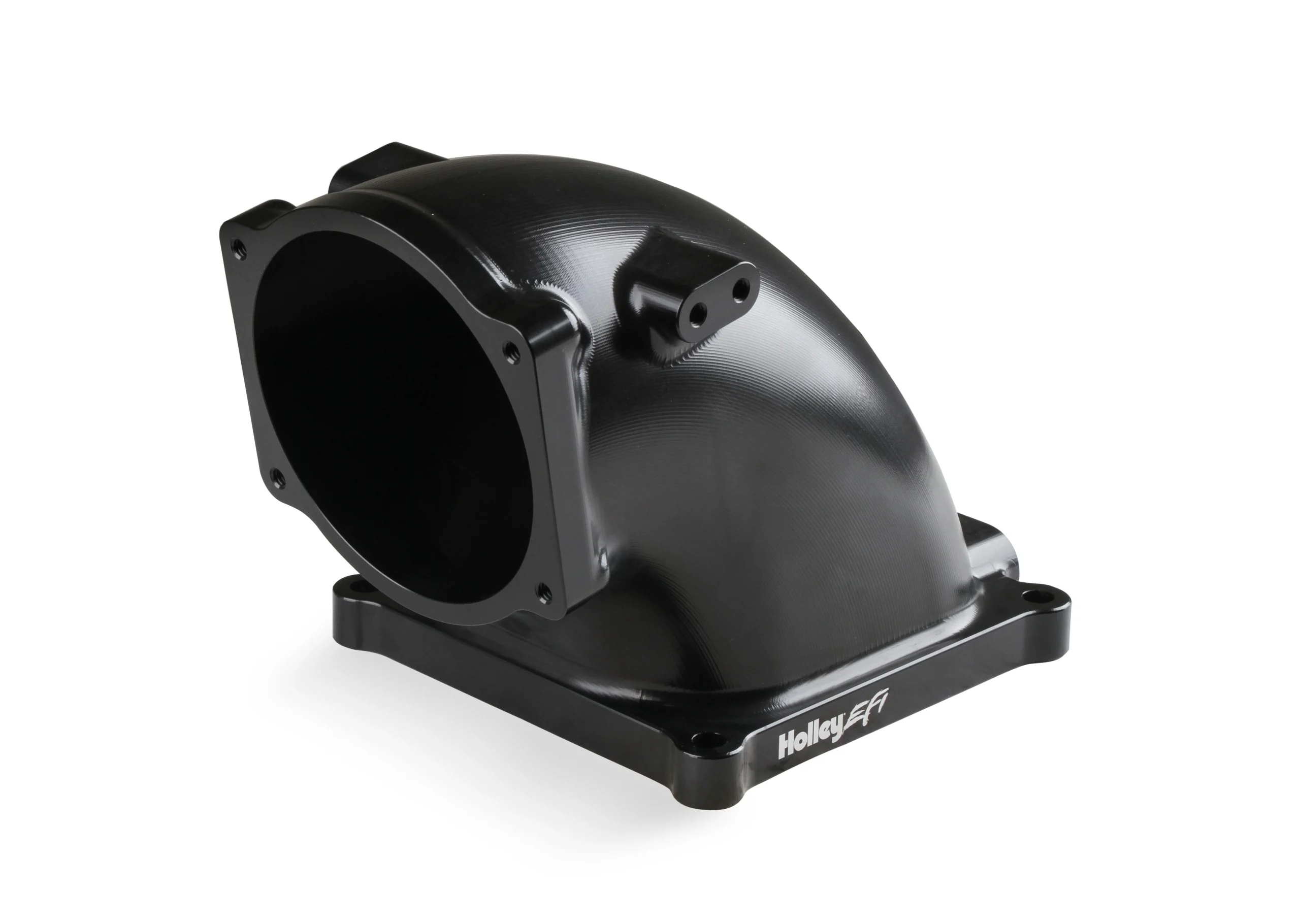

Billet 4500 EFI Throttle Body Intake Elbow-Ls- Black Finish

Description

Billet 4500 EFI Throttle Body Intake Elbow-Ls- Black Finish
EFI Throttle Body Intake Elbow 4500 – Fits GM LS Throttle Bodies
Overview
These machined billet aluminum EFI intake elbows allow the use of GM LS throttle bodies on any intake manifold w/ the 4500 mounting flange. Our design incorporates an optimized transition from the throttle body to the intake plenum for maximum airflow and distribution. Dual throttle cable mounting bracket bosses are included while the 4500 flange pattern allow the elbow throttle body to be mounted forward, sideways, or rearward. The throttle bracket is included. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4500 gasket, and 100?? throttle body angle for extra hood clearance. Includes billet MAP sensor port cover, gaskets hardware. The port design spacing will also allow a transducer to be used if a MAP sensor is not needed. The intake flange has an o-ring groove for a positive flange seal and the o-ring is included as well.
Features:

• Fits GM LS Throttle Bodies
• 105mm Throttle Body Opening – 100 Mounting Angle
• Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
• The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting
• (4) vacuum ports, MAP sensor port,
• (2) Throttle Linkage Mounting Bosses
• Machined Billet finish
• Overall Height 6.38???
• Black Finish

Details:

• Color: Black
• Construction: Cast
• Engine: GM LS1/LS2/LS6
• Finish: Black
• Fuel System Type: EFI
• Material: Billet Aluminum
• Throttle Bore: 105mm
• Warranty: Limited 90 Day
