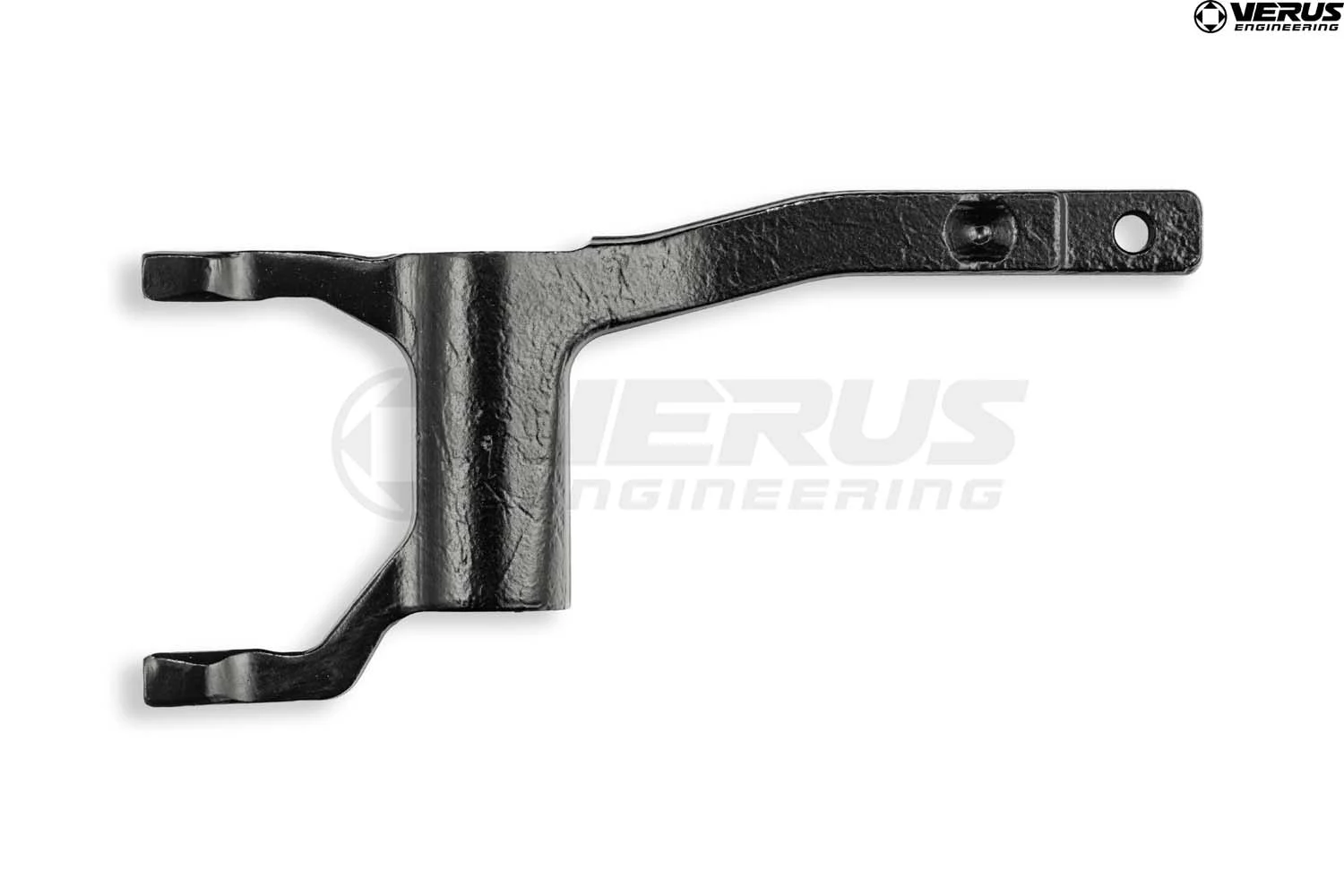

Forged Clutch Fork – Subaru STI

Description

OVERVIEW

Verus Engineering set out to greatly increase the strength and longevity of the OEM cast ductile iron STI clutch fork.  The Verus fork is specifically designed for use with high-strength pressure plates and clutches where the OE cast iron fork begins to show its weakness.

Our forged clutch fork was designed utilizing advanced FEA (Finite Element Analysis) software to dramatically increase strength, rigidity, and overall longevity. The unit is CNC machined from pre-hardened steel and then zinc coated black for corrosion resistance.  We then press in OE style PTFE lined bushings for effortless operation.

The clutch fork fits a variety of Subaru makes and models; please refer to our fitment chart at the bottom of this page to ensure your vehicle can utilize this clutch fork.

WHAT IS INCLUDED

• Forged Clutch Fork
• • PTFE Lined Bushings, Installed

OE #: 30530AA050

FEATURES

Increase Strength

Increase Rigidity

Improve Pedal Feel

Increase Longevity of Clutch Fork

OEM Fit and Finish

SPECIFICATIONS

 FEA Optimized Design

Forged for Better Grain Structure

Black E-Coated for Rust Resistance

PTFE Lined Bushings for Smooth Operation

OEM Fit and Finish

SCIENCE

As shown above, you can see a significant decrease in stress concentrations moving from OEM, cast ductile iron, to our forged steel unit. All graphs are set the exact same, with yield strength at the limit of the color gradient (red).  Warmer colors, like red and purple, show areas over yield strength.  The cooler colors, like deep blue, represent areas of low stress.  Adding material in weak locations as well as utilizing improved material and manufacturing techniques greatly improve the strength of this clutch fork.

Compatibility With Other Subaru Models:

2002 Subaru WRX

2004 – 2006 Subaru Impreza WRX STI

2008 – 2014 Subaru Impreza WRX STI Hatchback

2007 Subaru Impreza WRX STI Limited

2011 – 2014 Subaru Impreza WRX STI Limited Hatchback

2011 – 2014 Subaru Impreza WRX STI Limited Sedan

2011 – 2014 Subaru Impreza WRX STI Sedan

2010 Subaru Impreza WRX STI Special Edition Hatchback

2007 – 2009 Subaru Legacy GT spec.B

2015 – 2020 Subaru WRX STI Base

2015 Subaru WRX STI Launch Edition

2015 – 2020 Subaru WRX STI Limited

2016 Subaru WRX STI Series.HyperBlue

2018 Subaru WRX STI Type RA
