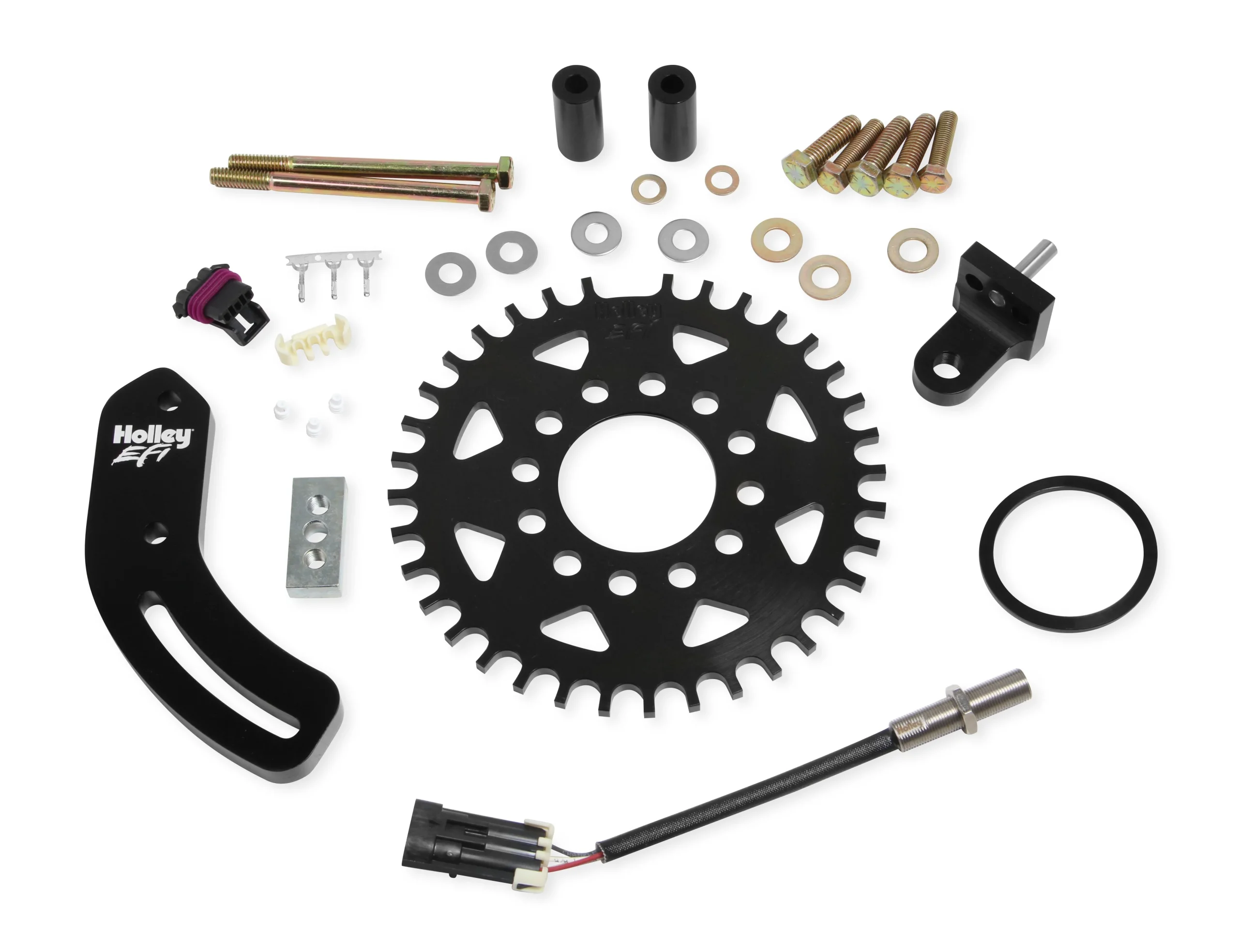

Holley EFI Crank Trigger System – SBF

Description

Holley EFI Crank Trigger System – SBF
Big Block Chevy w/ standard cam height; For external, dry timing-belt, cam drive systems
Overview
Specifically designed for use w/ JESEL and similar external, dry timing-belt, cam drive systems. Includes 3 wire hall-effect sensor (8-20 volts), anodized billet aluminum bracket, mounting hardware, mating connector, and stainless steel 1/4″-20 “flying magnet” screw w/ high-temp, rare-earth magnet.
Features:

• 7.25??? diameter, 1/4??? thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance striking good looks.
• Crank wheel centers off of the balancer??????s hub, eliminating the need for a centering ring
• All billet, 6061-T6 aluminum sensor mounting brackets with bright-dipped??? black anodized finish Laser etched Holley EFI logo
• Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
• All Grade 8 Mil. Spec mounting hardware

Details:

• Color: Black
• Diameter: 7.25 in.
• Diameter: 7.25″
• Finish: Black Zinc Oxide
• Make: Ford
• Sensor Dimensions: 12mm x 50mm
• Sensor Type: Hall Effect
• Trigger Type: 36-1
• Wheel Width: 1/4″

Links
Instruction Sheet
