Description

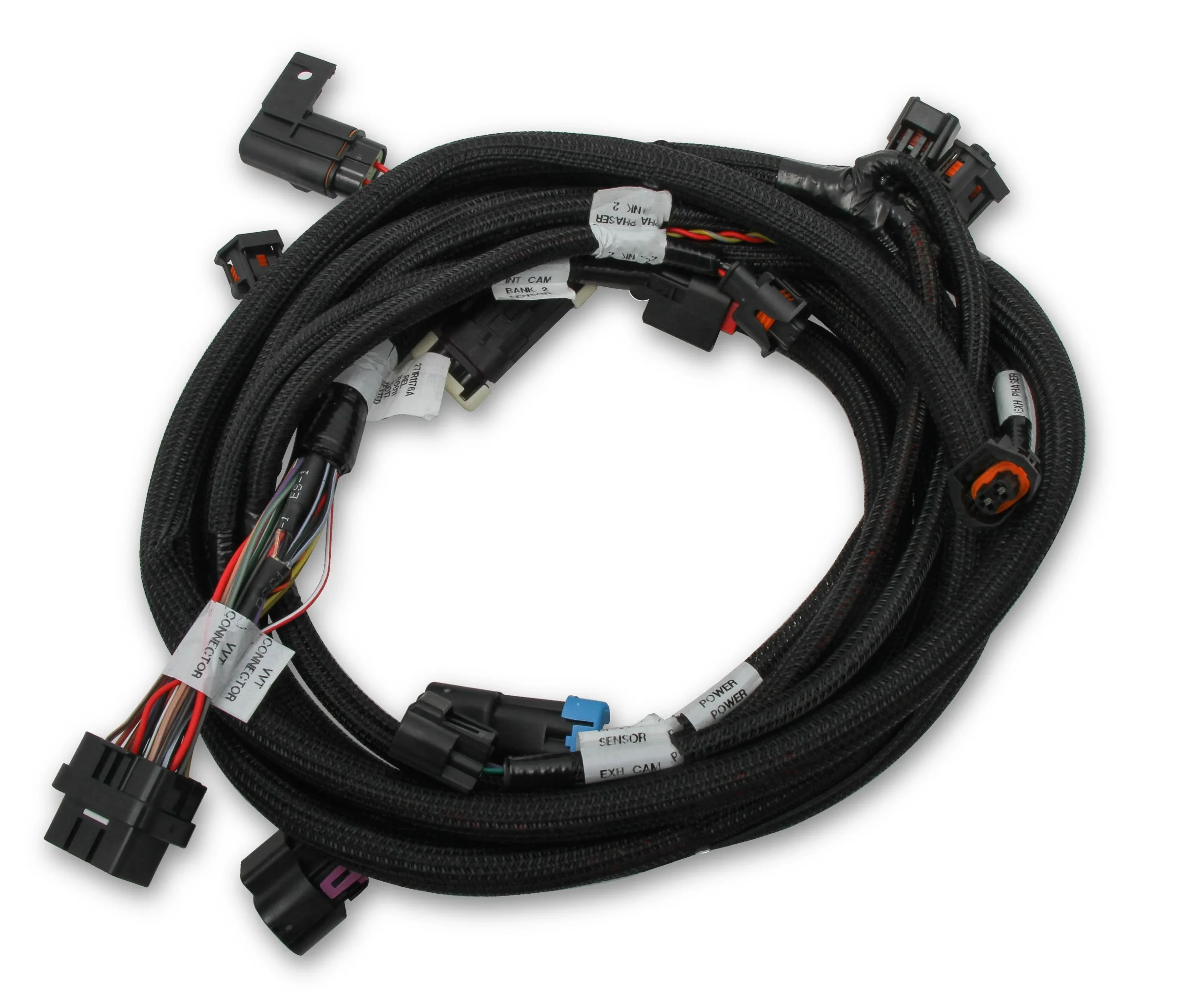

Holley EFI Ford Coyote Ti-VCT Sub Harness (2013-2017)
Coyote Ti-VCT Sub Harness for 2011-2012 Engines with Stock Camshafts
Overview
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Designed to be used with 558-319 Main Power Harness
Features:
- Compatible with HP or Dominator EFI
- Ti-VCT Cam control down to 400 RPM
- Commanded Timing matched within 1 degree
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated Stock Cam Position Tables ???? eliminate tuning guess work, optimal drive-ability and power right out of the box
- Installation of an external MAP sensor is required, we recommend part number 538-24 for N/A applications
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
- Pre-calibrated Ford sensor drop downs in the Holley EFI Software
- Plug and Play Ti-VCT Sub Harness designed specifically for 2013-2017 Coyote Engines
- Connectors are labeled for easy identification
Details:
- Harness Application: Ford
- Harness Type: Ignition
Links
Instruction Sheet
Wiring Diagram
