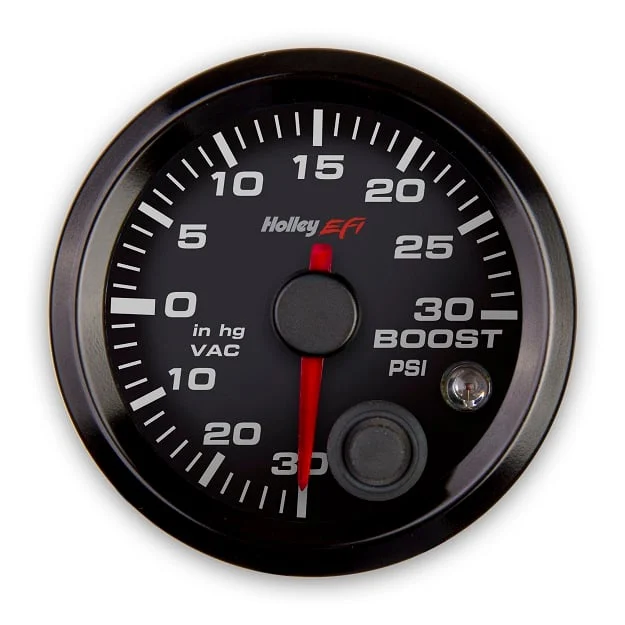

Holley EFI Vacuum/Boost Gauge

Description

Holley EFI Vacuum/Boost Gauge
Fuel Pressure – Standard 2-1/16″ size – CAN – 0-100 PSI – Black Face – Black Bezel
Overview
These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU’s, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection.
Easy to install – One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.
Features:

• Plug and play compatibility with all Terminator, HP, and Dominator ECU??????s (w/ module P/N 554-130)
• No programming necessary; eliminates the need to install duplicate sending units
• Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
• 270 sweep pointer from 6 to 3 o??????clock makes gauges easy to read at a glance
• Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
• Adjustable LED warning light allows user to set both low and high trigger points
• LED warning light brightness can be configured for both day and night
• Peak recall lets user view the min/max gauge readings with the push of a button
• Spin lock ring threads to back of gauge case for simple and secure gauge mounting
• CNC machined billet aluminum bezels with anodized finish ???? Bezels are threaded for easy replacement
• Multiple bezel options available separately ???? User can customize the gauges to their preference
• Gauges include 6 in. daisy chain cable and 3 ft. power harness
• Additional length cables and multi-connection power distribution harness available separately

Details:

• Gauge Background Color: Black
• Gauge Type: Boost
• Size: 2-1/16″

Links
Instruction Sheet
