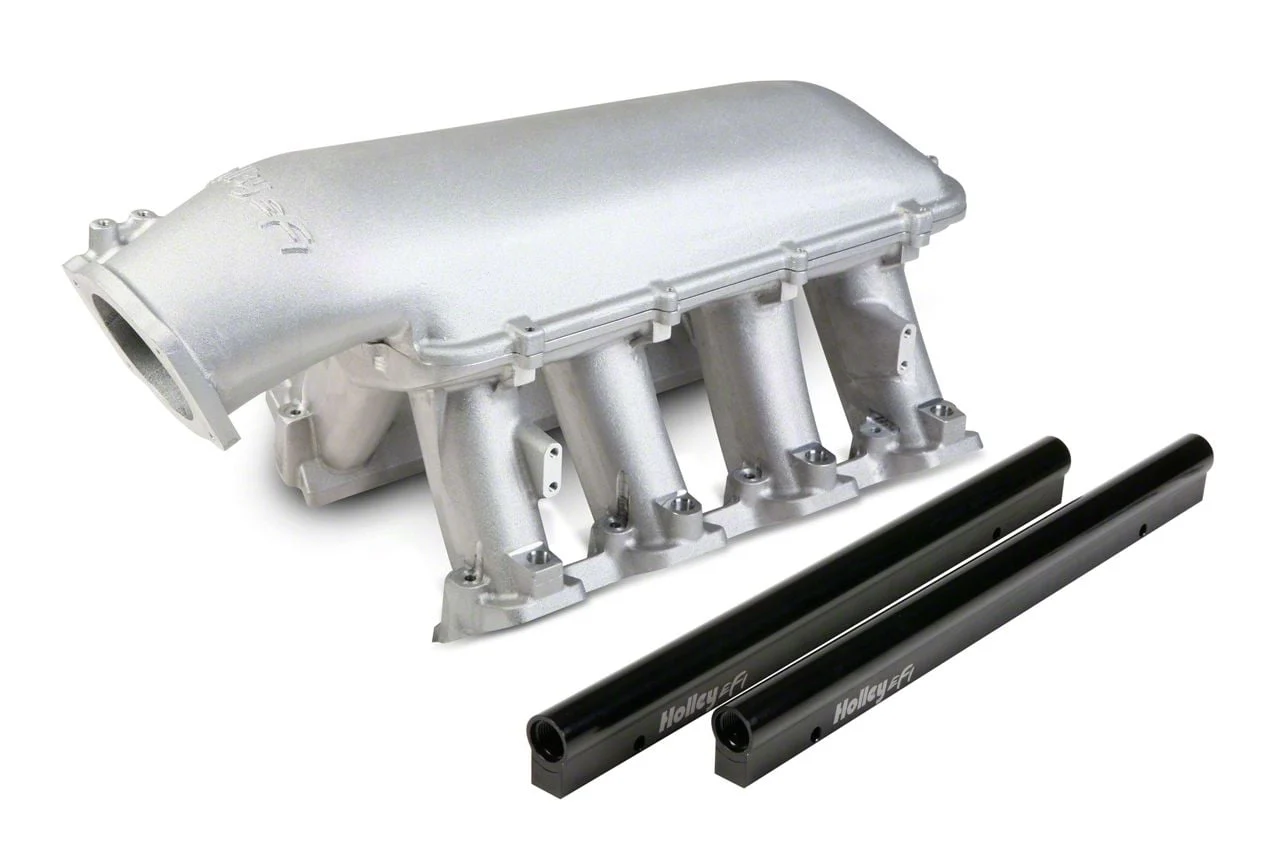

Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 105mm LS Throttle Body Mount (10-15 Camaro SS)

Description

High-Performance Intake Manifold. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with a 105mm LS Throttle Body Mount is engineered for high-performance naturally aspirated and forced induction applications. It improves airflow to optimize power output from 3500 to 8000 RPM, making it ideal for enthusiasts who want to maximize performance on LS3 or L92 engines.

_x000D__x000D_

Durable Cast Aluminum Construction. Constructed from cast aluminum with a natural finish, this intake manifolds combines durability with an attractive, race-inspired look. Its modular base design supports compatibility with various EFI and carbureted tops, while the machined fuel rails provide reliable fuel delivery and help reduce pressure pulsations.

_x000D__x000D_

Easy Installation. Designed for installation using standard mechanical skills, this manifold requires no drilling or extensive modifications, making it accessible to both professional installers and experienced enthusiasts.

_x000D__x000D_

Warranty and Application. Includes a manufacturer’s limited 90-day warranty and is specifically designed to fit and perform on 2010 through 2015 Camaro SS models.

Holley 300-117

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Cast Aluminum Construction

_x000D_

• Runner Length and Tapered Cross-Section Designed to Perform Well Across a Wide Range of Engine Configurations

_x000D_

• Modular Base Configuration to Accommodate Various Carbureted and EFI Tops, Ideal for Builders and Fabricators Creating Custom Induction Systems

_x000D_

• Suitable for Naturally Aspirated or Forced Induction Engines in the 6.0 to 7.0+ Liter Range; Optimized for Maximum Power Between 7000 and 8000+ RPM

_x000D_

• EFI Fuel Rails Machined for -8AN O-Ring Fittings, Featuring Passages Large Enough to Support High Fuel Flows and Minimize Pressure Pulsations; Included Standard with EFI Hi-Ram Kits

_x000D_

• Plenum Top Gasket Type – 3/32” Round O-Ring Cord

_x000D_

• Port Size – 2.49” Height x 1.21” Width

_x000D_

• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

_x000D_

• Throttle Body Flange Location (92/102mm EFI Plenum Top): Height – 8.42” (From Engine Block Lifter Valley Cover Flange), Longitudinal Location – 3.84” (Forward from Engine Block Front Flange), Angle – 25° Down from Vertical

_x000D_

• Manifold Includes Provisions for One 3/8 NPT and Two 1/8 NPT Fittings

_x000D_

• Runner Length – 6.50”

_x000D_

• As-Cast Runner Cross-Sectional Area – Tapered from 4.25 In² to 2.77 In²

_x000D_

• Base Plenum Top Mounting Flange Height – 8.42” to the Lifter Valley Cover Flange on Engine Block

_x000D_

• Total Height with 92/105mm EFI Plenum Top – 12.32” to the Lifter Valley Cover Flange on Engine Block

_x000D_

• EFI Hi-Ram Intake Designed for 1 x 105mm GM LS Throttle Body with Longitudinal Mount Plenum Top

_x000D_

• Fuel Rails Included

_x000D_

• Vacuum Ports Included

_x000D_

• Fits 2010–2015 Camaro SS Models
