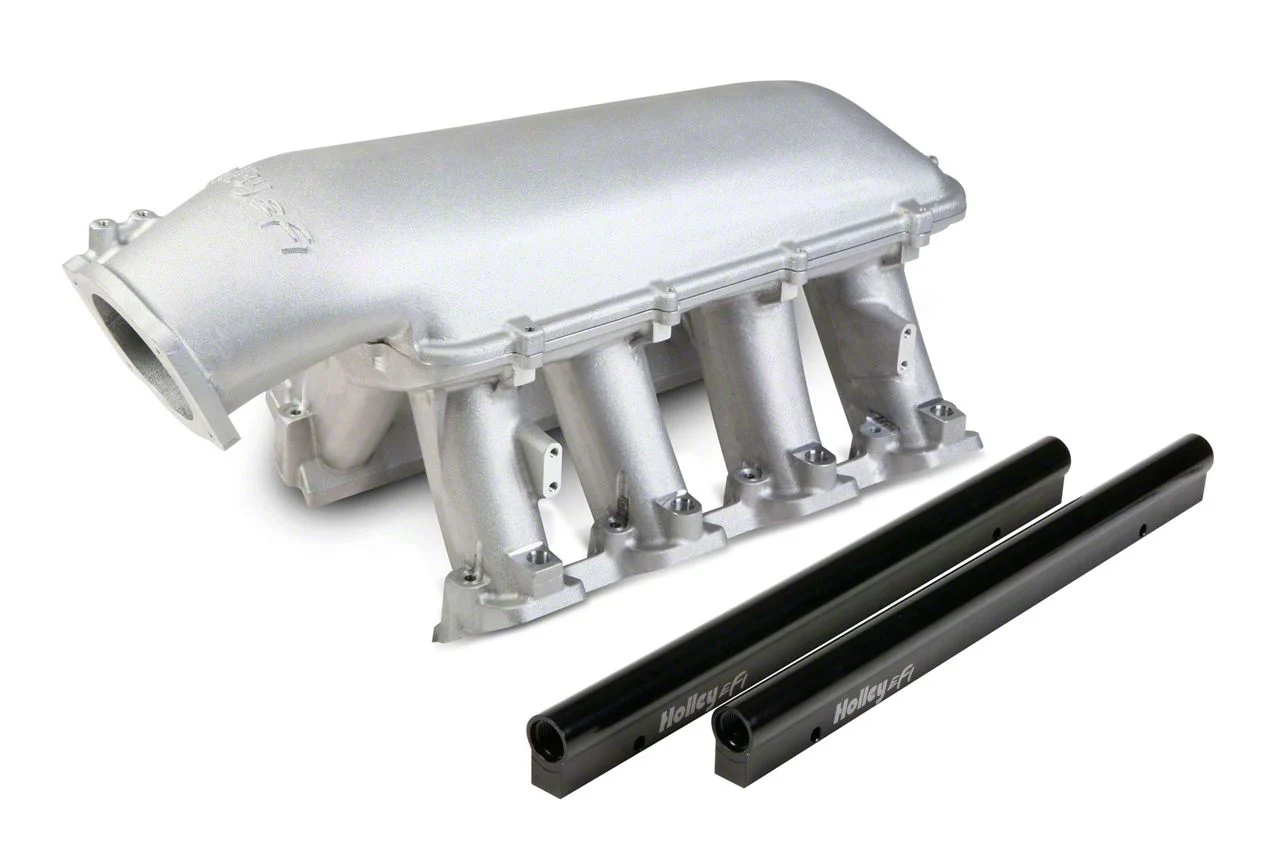

Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 105mm LS Throttle Body Mount (2008 6.2L Tahoe)

Description

High-Performance Intake Manifold. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 105mm LS Throttle Body Mount is engineered to optimize airflow for naturally aspirated and forced induction engines in the 6.0 to 7.0+ liter range. It enhances engine breathing at high RPMs, improving power output and efficiency for a wide range of high-performance automotive applications.

_x000D__x000D_

Construction and Appearance. Crafted from cast aluminum, this intake manifold features durable construction with a natural finish. The tapered runner cross-section design supports a broad RPM range, while structurally rigid modular components allow for customization and fabrication flexibility.

_x000D__x000D_

Installation. The intake manifold installs using OEM-style bolt patterns without requiring additional drilling or machining, making it suitable for experienced enthusiasts and professional installers seeking a straightforward upgrade.

_x000D__x000D_

Warranty. Covered by a manufacturer’s limited 90-day warranty, providing assurance against defects in materials and workmanship.

_x000D__x000D_

Application. Specifically designed to fit the 2008 6.2L Tahoe LS engine, accommodating the vehicle’s unique block flange dimensions and throttle body mounting parameters.

Holley 300-117

CA Residents: WARNING: Cancer and Reproductive Harm

_x000D_
• Cast Aluminum Construction

_x000D_

• Runner Length and Tapered Cross-Section Designed to Perform Well for a Wide Range of Engine Configurations

_x000D_

• Base Designed to Be Modular in Configuration to Accept a Wide Range of Carbureted and EFI Tops

_x000D_

• Intended for Use on Naturally Aspirated or Forced Induction Engines in the 6.0 to 7.0+ Liter Range

_x000D_

• Maximum Power Achieved at 7000-8000+ RPM

_x000D_

• EFI Fuel Rails Machined for -8AN O-Ring Fittings with Large Passages to Accommodate High Fuel Flows and Dampen Pressure Pulsations

_x000D_

• Plenum Top Gasket Type is 3/32” Round O-Ring Cord

_x000D_

• Port Size is 2.49” Height x 1.21” Width

_x000D_

• Mounting Flange Gasket Type is Standard LS3 Molded O-Ring

_x000D_

• Throttle Body Flange Location Height is 8.42” from Engine Block Lifter Valley Cover Flange

_x000D_

• Throttle Body Flange Longitudinal Location is 3.84” Forward from Engine Block Front Flange

_x000D_

• Throttle Body Flange Angle is 25 Degrees Down from Vertical

_x000D_

• Manifold Has Provisions for One 3/8 NPT and Two 1/8 NPT Fittings

_x000D_

• Runner Length of 6.50” with Tapered As-Cast Runner Cross-Sectional Area from 4.25 in² to 2.77 in²

_x000D_

• Base Plenum Top Mounting Flange Height Matches Throttle Body Flange Height

_x000D_

• Total Height with 92/105mm EFI Plenum Top is 12.32” to the Lifter Valley Cover Flange on Engine Block

_x000D_

• Single Plane Manifold Design Geared Toward Performance Applications

_x000D_

• Includes Fuel Rails Standard with EFI Hi-Ram Kits

_x000D_

• Fits 2008 6.2L Tahoe
