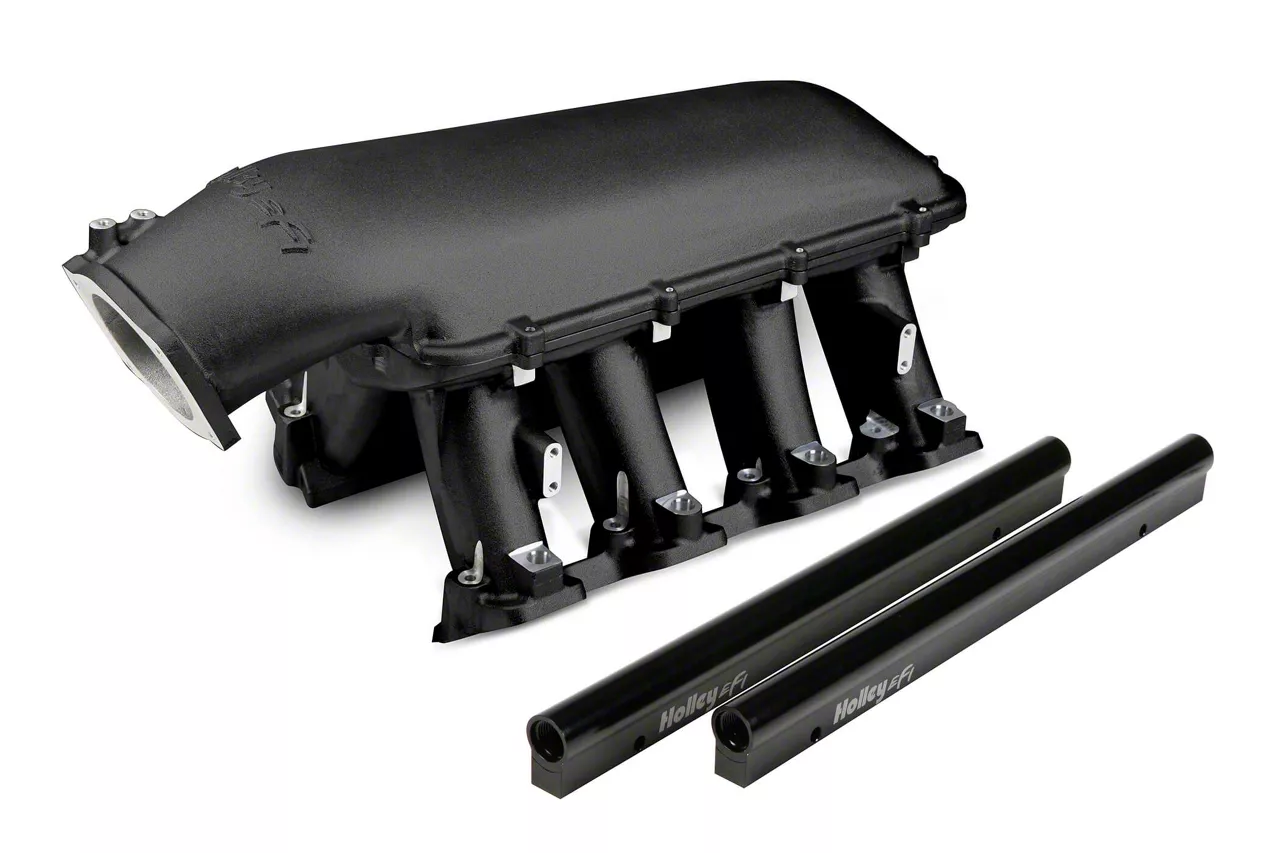

Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 105mm LS Throttle Body Mount; Black (10-15 Camaro SS)

Description

High-performance Intake Manifold. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 105mm LS Throttle Body Mount; Black offers an advanced induction solution for naturally aspirated and forced induction engines in the 6.0 to 7.0+ liter displacement range. Engineered to accommodate a large throttle body, this intake enhances airflow at high RPMs, improving power delivery and engine efficiency for racing and performance applications.

Construction and Appearance. Crafted from cast aluminum, this intake manifold features a durable black finish for a sleek, aggressive look. The intake includes high-flow EFI fuel rails machined for -8AN O-ring fittings, ensuring reliable fuel delivery and pressure stabilization. The modular design supports various build configurations while maintaining a race-inspired aesthetic.

Installation. Installation requires moderate mechanical skill and does not typically require modifications such as drilling. It bolts directly onto LS3/L92 style cylinder heads using standard molded O-ring gaskets for a secure fit.

Warranty. This intake manifold is covered by a limited 90-day manufacturer’s warranty.

Application. Designed to fit the 2010 to 2015 Camaro SS models, this intake provides an optimized airflow path and compatibility with the GM LS3/L92 engine platform used in these vehicles.

Holley 300-117BK

CA Residents: WARNING: Cancer and Reproductive Harm

• EFI Hi-Ram Intake For One X 105mm GM LS3/L92 Throttle Body – Longitudinal Mount Plenum Top
• Legal For Sale Or Use On Racing Use Only Vehicles
• Designed As A Cost-effective Alternative To Fabricated Sheet Metal For High-performance Applications
• Compatible With Naturally Aspirated And Forced Induction Engines In The 6.0 To 7.0+ Liter Range
• Runner Length Of 6.50 Inches With Tapered Cross-sectional Area From 4.25 To 2.77 Square Inches
• Standard LS3 Molded O-Ring Mounting Flange Gasket Included
• Plenum Total Height 12.32 Inches To Lifter Valley Cover Flange
• Throttle Body Flange Is 8.42 Inches High, 3.84 Inches Forward, And Tilted 25 Degrees Down
• Cast Aluminum Construction With Black Plenum Finish
• Includes EFI Fuel Rails Machined For -8AN O-Ring Fittings
• Single Plane Manifold Type With Removable Top/Lid
• Includes Fuel Rails And Throttle Body Gasket; Fuel Injectors And Throttle Body Are Not Included
• Features Vacuum Ports; No EGR Ports Or Nitrous Bungs Included
• Recommended For Performance Forced Induction Use
• Fits 2010-2015 Camaro SS Models
