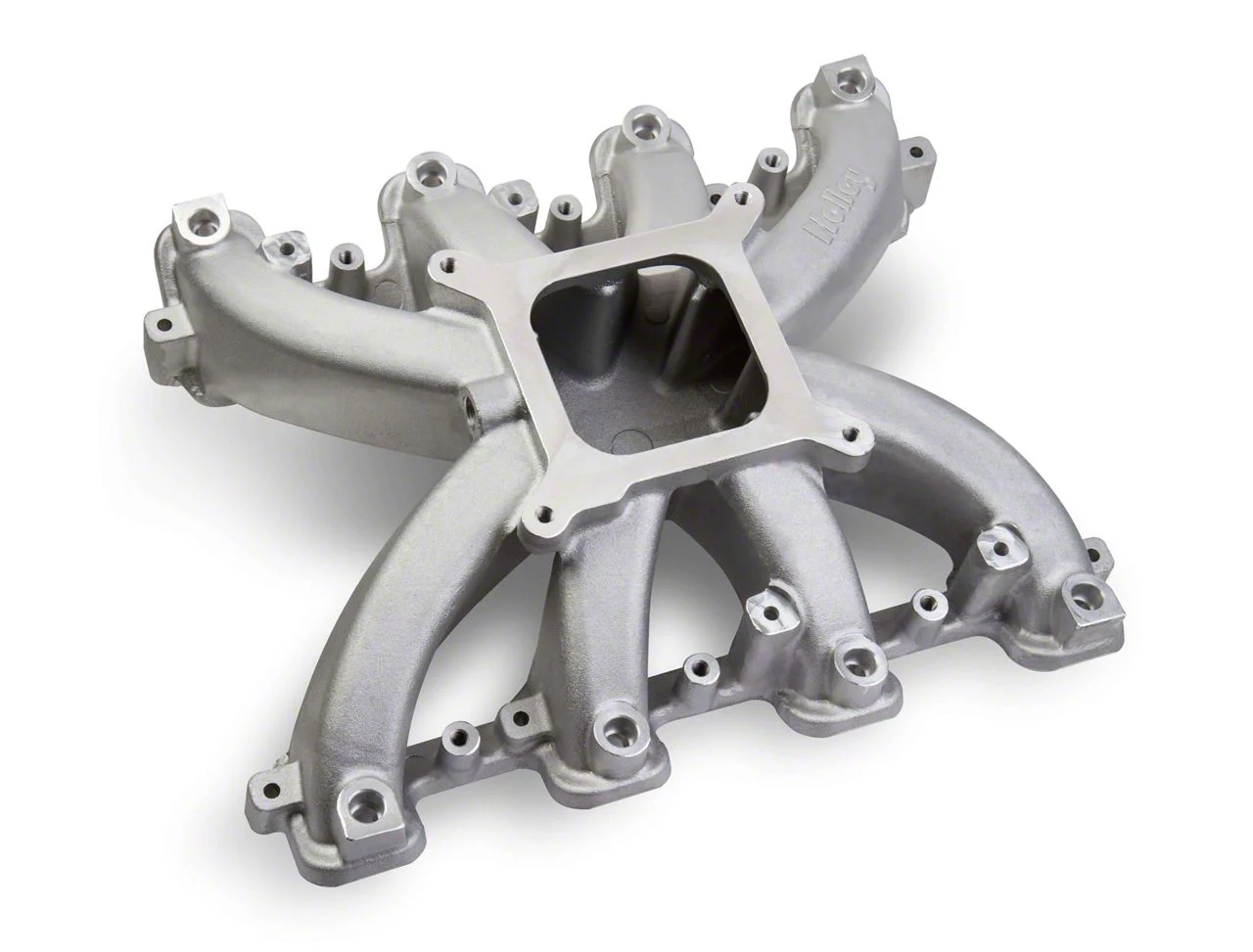

Holley GM LS3/L92 Single Plane EFI Intake Manifold (10-15 Camaro SS)

Description

Performance Intake Manifold. The Holley GM LS3/L92 Single Plane EFI Intake Manifold is engineered to enhance airflow and optimize engine output for GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads. It improves throttle response and delivers strong performance within the 2500-7000 RPM range, making it ideal for high-performance applications.

Construction and Appearance. Made from cast aluminum, this intake manifold features a lightweight and durable design with consistent wall thicknesses for strength and rigidity. It has a natural finish and includes premium Viton® O-ring gaskets to provide a reliable, OEM-style seal between the intake and cylinder heads.

Installation. Installation is straightforward with minimal modifications required for hood clearance due to the manifold’s low carb flange height. No drilling is necessary. Note that this manifold is not compatible with factory fuel rails and requires the specified Holley Fuel Rail Kit 534-218.

Warranty. This intake manifold is covered by a manufacturer’s limited 90-day warranty.

Application. Specifically designed for 2010 through 2015 Camaro SS models using GM LS3 or L92 style engines.

Holley 300-136

CA Residents: WARNING: Cancer and Reproductive Harm

• Single Plane EFI LS Intake Manifold
• Fits All GM LS Gen III Engines Equipped With LS3/L92 Style Rectangular Port Cylinder Heads
• Height (Front) – 5.417″ To The Lifter Valley Cover Flange At The Engine Block Front Flange And Bellhousing Flange
• Optimized Runner Layout And Constant Cross Sectional Area For Broad Torque Curve And Best Vehicle Performance From 2500-7000 RPM
• This Manifold Requires The Use Of Holley Fuel Rail Kit 534-218 (Factory Fuel Rails Not Compatible)
• Minimum Carb Flange Height Allows Fitment In Vehicles With Minimal Hood Modifications
• 4150 Square Bore Flange
• Efficient Casting Design With Lightweight, Consistent Wall Thicknesses And Improved Casting Quality
• Weight – 11.5 Lbs.
• Port Size – 2.50″ Height X 1.15″ Wide
• 2500-7000 RPM Power Band
• Cast Aluminum Construction Suitable For Centrifugal Blower, Turbocharged Or NOS Mild Power Adder Applications
• Includes Viton® O-Ring Intake To Cylinder Head Gaskets
• Throttle Body Bore Diameter – 3.6 IN
• Vacuum Ports Included
• Fits 2010-2015 Camaro SS Models
