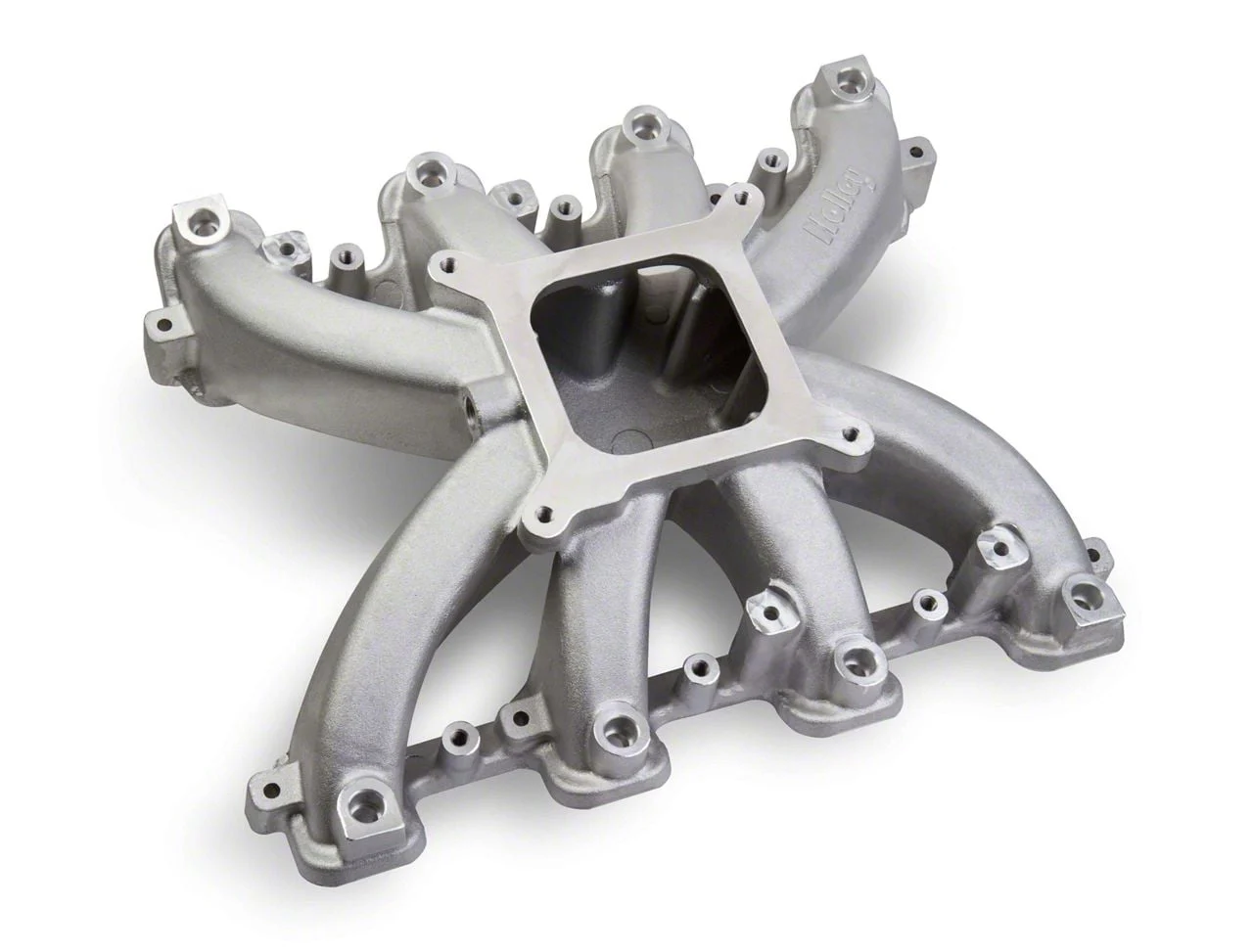

Holley GM LS3/L92 Single Plane EFI Intake Manifold (2008 6.2L Tahoe)

Description

Premium EFI Intake. The Holley GM LS3/L92 Single Plane EFI Intake Manifold enhances engine breathing by optimizing airflow to GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads. Designed to improve torque and horsepower within the 2500-7000 RPM range, it supports applications including centrifugal superchargers, turbochargers, and mild nitrous support.

Construction and Appearance. Crafted from cast aluminum with a natural finish, this manifold features a lightweight and efficient casting design with consistent wall thickness for durability and quality. The optimized runner layout maintains a constant cross-sectional area to provide a broad torque curve and peak vehicle performance.

Installation. Installation is straightforward with no need for drilling, as it includes mounting bolts, washers, and OEM-style Viton® O-ring gaskets for a reliable seal. Note that factory fuel rails are incompatible; Holley Fuel Rail Kit 534-218 is required for proper fuel rail compatibility.

Warranty. This intake manifold comes with a manufacturer’s limited 90-day warranty to ensure reliable performance.

Application. Compatible with GM LS Gen III engines using LS3/L92 style rectangular port heads. Specifically fits the 2008 6.2L Tahoe.

Holley 300-136

CA Residents: WARNING: Cancer and Reproductive Harm

• Single Plane EFI LS Intake Manifold
• Fits All GM LS Gen III Engines Equipped With LS3/L92 Style Rectangular Port Cylinder Heads
• Height (Front) – 5.417″ To The Lifter Valley Cover Flange At The Engine Block Front Flange And Bellhousing Flange
• Optimized Runner Layout And Constant Cross Sectional Area – Broad Torque Curve, Best Vehicle Performance From 2500-7000 RPM
• This Manifold Will Not Work With Factory Fuel Rails And Requires The Use Of Holley Fuel Rail Kit 534-218
• Minimum Carb Flange Height – Fit In Vehicles With Minimal Hood Modifications
• 4150 Square Bore Flange
• Efficient Casting Design – Lightweight, Consistent Wall Thicknesses, Improved Casting Quality
• Weight – 11.5 Lbs.
• Port Size – 2.50″ Height X 1.15″ Wide
• 2500-7000 RPM Power Band
• Cast Aluminum Construction – Ideal For Centrifugal Blower, Turbocharged Or Mild Nitrous Power Adder Applications
• Includes Viton® O-Ring Intake To Cylinder Head Gaskets
• Basic Operating RPM Range – 2500-7000 RPM
• Carburetor Flange – Square/4150
• Carburetor Quantity – 1
• Carburetor Studs Included – No
• Category – Engine
• CNC Ported – No
• Color – Silver
• Construction – Cast Aluminum
• Cylinder Head Port Shape – Rectangle
• Deck Height – 9.24 IN
• EGR Port – No
• Emission Code – 3
• Engine – GM LS3/L92
• Flange Style – 4150 Square Bore
• Front Maximum Height – 5.417 IN
• Fuel Injectors Included – No
• Fuel Rail(s) Included – No
• Fuel System Type – EFI
• Gasket Or Seal Included – Yes (Viton® O-Ring Intake To Cylinder Head Gaskets)
• Grade Type – Performance
• Manifold Type – Single Plane
• Material – Aluminum
• Nitrous Bung(s) Included – No
• Part Type – Engine Intake Manifold
• Plenum Finish – Natural
• Product Type – Intake Manifold
• Rear Maximum Height – 5.417 IN
• Recommended Use – Forced Induction
• Removable Runners – No
• Removable Top/Lid – No
• Single Or Dual Plane Type – Single Plane
• Sub Category – Cylinder Block Components
• Throttle Body Bore Diameter – 3.6 IN
• Throttle Body Gasket Included – No
• Throttle Body Included – No
• Vacuum Ports – Yes
• Warranty – Manufacturer’s Limited 90 Day Warranty
• Includes Mounting Bolts & Washers
• Includes O-Ring Cylinder Head Mounting Flange Gaskets For An OEM Style Seal
• Fits 2008 6.2L Tahoe
