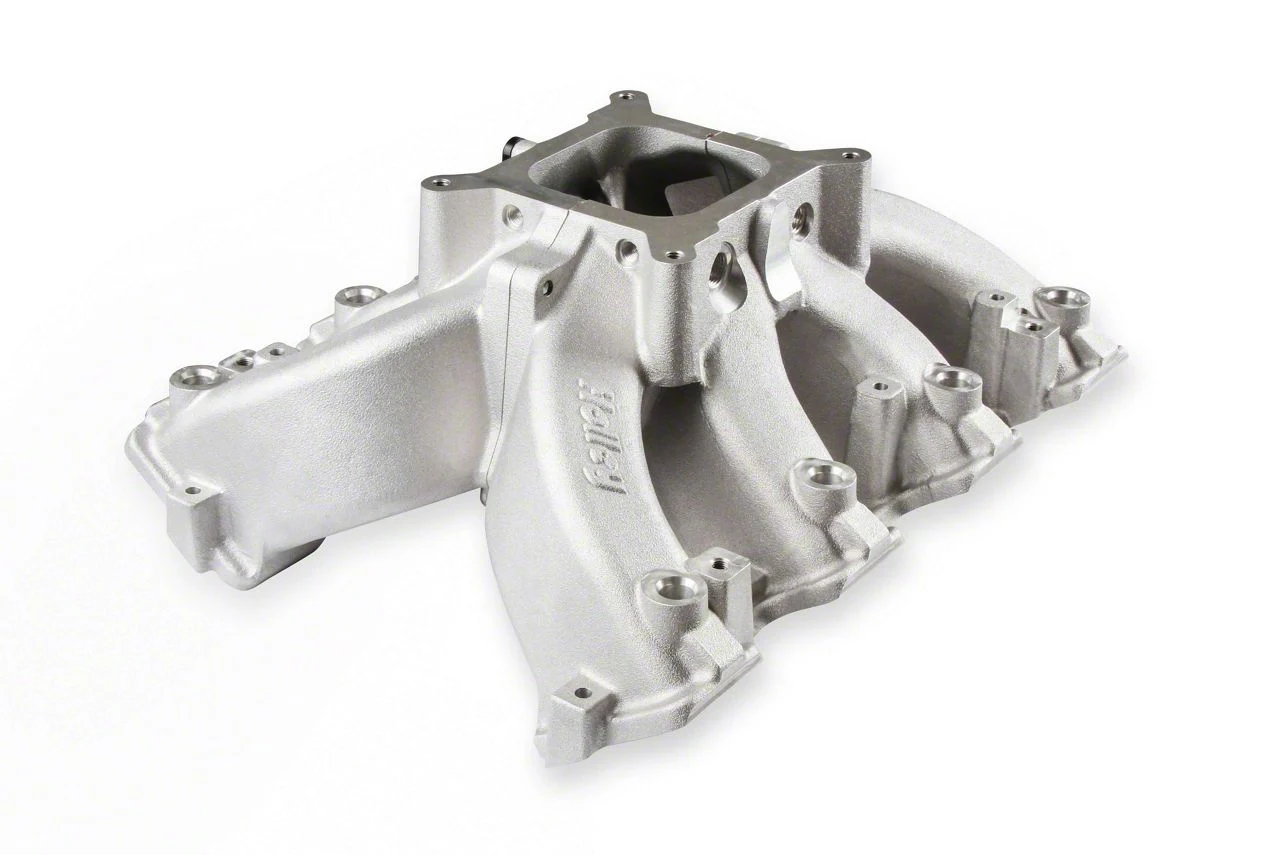

Holley GM LS3/L92 Single Plane EFI Split-Design Race Intake Manifold (07-08 6.2L Yukon)

Description

High-Performance Race Manifold. The Holley GM LS3/L92 Single Plane EFI Split-Design Race Intake Manifold is engineered to deliver optimum airflow and power for high-powered GM LS engines. Designed specifically for racing and performance applications, it enhances power output primarily in the mid to upper RPM ranges, up to approximately 7000 rpm. Its split design facilitates easy porting customization, providing enhanced tuning flexibility.

Durable Lightweight Construction. Made from cast aluminum with a natural finish, this manifold features a robust split design with captured O-ring seals for a precise, leak-free fit. Rail mounting hardware is included for secure attachment (fuel rails sold separately). The standard 4150 throttle body flange accepts large throttle bores suitable for racing configurations.

Installation Made Simple. Installation is straightforward, requiring no drilling, due to integrated bolt locators and O-ring seals that simplify assembly. It is designed for direct bolt-on compatibility with LS3/L92 cylinder heads.

Warranty Coverage. This product includes a manufacturer’s limited 90-day warranty for added assurance.

Application. Specifically fits 2007-2008 6.2L Yukon models equipped with LS3/L92-style rectangle-port heads without modification.

Holley 300-290

CA Residents: WARNING: Cancer and Reproductive Harm

• EFI Single Plane Split-Design Race Intake Manifold
• Fits All GM LS Gen III Or IV Engines Equipped With LS3/L92 Cylinder Heads
• As-Cast Runner Cross-Sectional Area – 4.5 In² At The Runner Entry Tapered To 3.2 In² At The Flange Exit
• A-B Height – 7.20″ (0° Carb Flange Angle)
• Designed For Hi-Performance/Racing Engine Applications, 5.3 To 6.2+ Liter Displacement
• Maximum Engine Speeds Of 6000-7000 Rpm Depending On Engine Combination
• Throttle Body Flange – Standard 4150 For Up To 1-3/4″ Diameter Throttle Bores
• Port Size – 2.59″ Height X 1.28″ Wide
• Split Feature Allows Easy Disassembly For Custom Porting And Matching
• Vacuum Port Options Include (2) 1/8, (1) 1/4, And (1) 3/8, NPT Ports At The Carb Flange
• Captured O-Ring Seals At Head Ports And Split
• Rail Mounting Hardware Included (Fuel Rails Not Included)
• Lightweight Compared To Other Split Race Intakes
• Maximum Performance Race Design With Hood Clearance Consideration
• Basic Operating RPM Range 3500-8000 RPM
• Carburetor Flange Square/4150
• Carburetor Quantity 1
• Cylinder Head Port Shape Rectangle
• Deck Height 9.24 In
• EGR Port Not Included
• Emission Code 3 (Non-Emissions-Controlled Vehicles Only)
• Engine Compatibility GM LS3/L92
• Fuel Injector Not Included
• Fuel Rail Not Included
• Fuel System Type EFI
• Grade Type Performance
• Intake Port Gasket Not Included
• Manifold Type Split Single Plane
• Material Aluminum
• Plenum Finish Natural
• Recommended Use High-Performance/Racing Applications (Including Forced Induction)
• Removable Runners Not Included
• Single Or Dual Plane Type Single Plane
• Throttle Body Bore Diameter 3.6″
• Throttle Body Included Not Included
• Throttle Body Gasket Included Not Included
• Vacuum Ports Yes
• Warranty Manufacturer’s Limited 90 Day Warranty
• Fits 07-08 6.2L Yukon
