Description

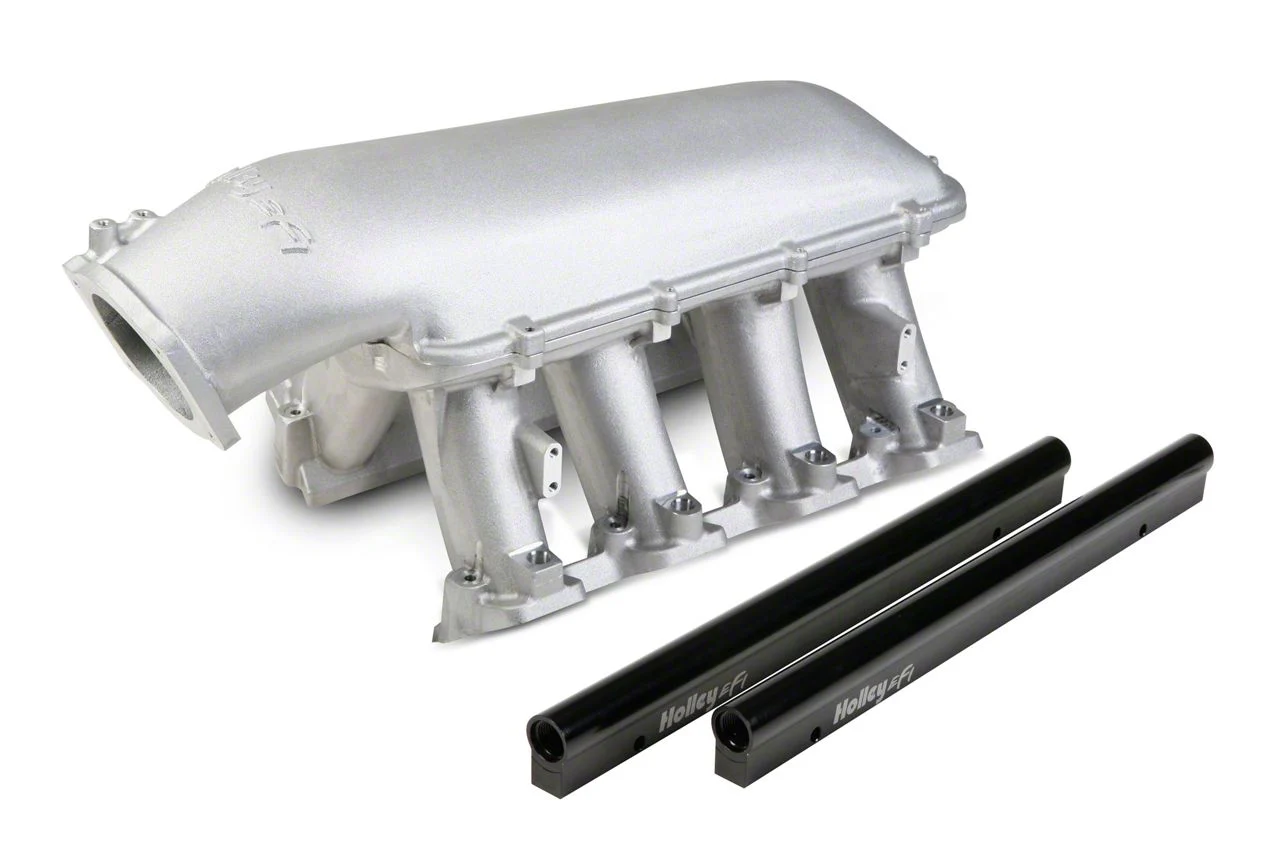

High-Performance Intake Manifold. The Holley LS7 EFI Hi-Ram Intake Manifold features a 92mm LS throttle body flange and includes fuel rails. It is engineered for naturally aspirated and forced induction LS7-style engines in the 6.0 to 7.0+ liter range, delivering maximum power at high RPMs between 7000 and 8000+. This intake manifold optimizes airflow and fuel delivery for enhanced engine performance, making it ideal for muscle car, drag race, and track enthusiasts.
Construction and Design. Crafted from cast aluminum with a natural finish, this manifold employs a single-plane Hi-Ram design and a modular base to accept a variety of EFI and carbureted top options. The tapered runner design improves airflow efficiency and power output across a broad range of engine configurations.
Installation. Designed to fit directly onto compatible LS7-style cylinder heads without requiring drilling, it provides flexible mounting options suitable for custom setups. Throttle body and fuel injectors are not included but mounting provisions and gaskets are supplied.
Warranty. Backed by a manufacturer’s limited 90-day warranty.
Application. Specifically fits 2014 to 2015 Camaro Z/28 models.
Holley 300-124
CA Residents: WARNING: Cancer and Reproductive Harm
- Intended for use on naturally aspirated or forced induction LS7-style engines in the 6.0 to 7.0+ liter range, with max power at 7000-8000+ RPM
- EFI fuel rails machined for -8AN O-ring fittings with passages designed to accommodate high fuel flows and dampen pressure pulsations in the fuel system
- Cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited
- Compatible with LS7 style cylinder heads for outstanding potential in both naturally aspirated and forced induction setups
- Modular base designed to accept a wide range of carbureted and EFI tops
- Runner length and tapered cross-section engineered to perform well across a wide range of engine configurations
- Cast aluminum construction with natural finish
- Base plenum top mounting flange height: 8.42” to the lifter valley cover flange on engine block
- Throttle body flange location with 92/102mm EFI plenum top: height – 8.42” from engine block lifter valley cover flange, longitudinal location – 3.84” forward from engine block front flange, angle – 25 degrees down from vertical
- Plenum top gasket type: 3/32” round O-ring cord
- Total height with 92/102mm EFI plenum top: 12.32” to the lifter valley cover flange on engine block
- Runner length: 6.29”, as-cast runner cross-sectional area tapers from 4.67in² to 2.84in²
- Mounting flange gasket type: standard LS3 molded O-ring
- Port size: 2.49” height by 1.21” wide
- Fuel injectors not included
- Fuel rails included, machined for high flow and pressure dampening
- Includes gasket or seal
- Manifold type: Hi-Ram single plane design
- Compatible with EFI fuel systems; vacuum ports included
- Throttle body gasket included; throttle body not included
- Recommended for forced induction use
- Removable top/lid feature
- Manufacturer’s limited 90-day warranty
- Fits 2014-2015 Camaro Z/28
