Description

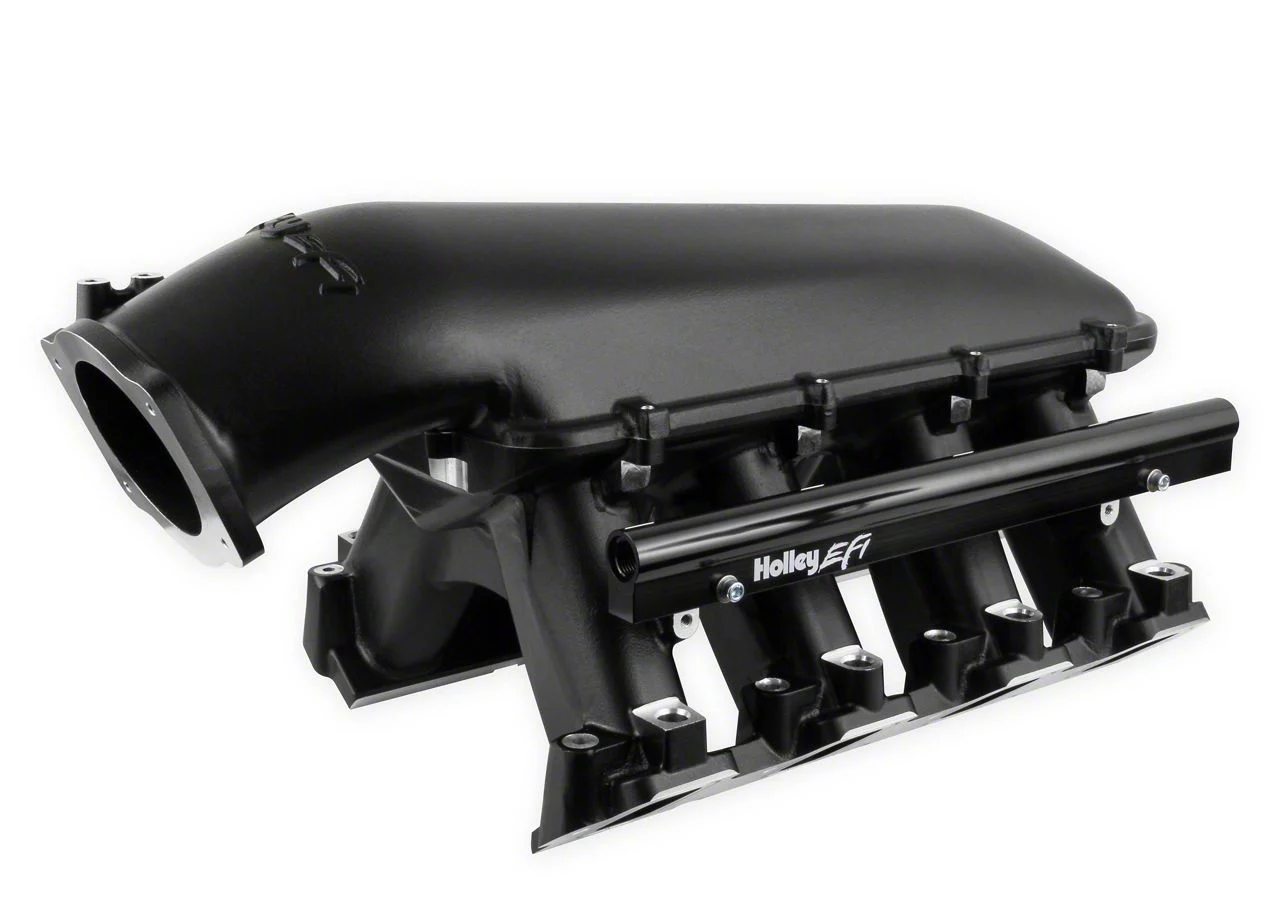

High-Performance Intake. The Holley LS7 EFI Hi-Ram Intake Manifold features a 92mm LS throttle body mount and includes fuel rails. Designed to maximize airflow for naturally aspirated and forced induction LS7 engines ranging from 6.0 to over 7.0 liters, it enhances throttle response and overall engine efficiency at high RPMs. This intake is ideal for racing, muscle cars, and other high-powered applications.
Construction and Appearance. Crafted from cast aluminum for durability and lightweight performance, the black finish gives the manifold an aggressive, race-inspired look perfect for visible engine bays and custom builds.
Installation. Designed to fit existing mounting points on compatible LS7 engines with no drilling required for installation. This intake manifold offers a largely drop-in solution for builders, although hood clearance and throttle body compatibility should be considered.
Warranty. A manufacturer’s limited 90-day warranty covers defects and workmanship.
Application. Specifically fits the 2014-2015 Camaro Z/28 equipped with the LS7 engine, ensuring precise compatibility for this performance vehicle.
Holley 300-124BK
CA Residents: WARNING: Cancer and Reproductive Harm
- Cast Aluminum Construction
- Designed for Naturally Aspirated or Forced Induction LS7 Engines in the 6.0 to 7.0+ Liter Range, Optimized for Max Power at 7000-8000+ RPM
- EFI Fuel Rails Machined for -8AN O-Ring Fittings with Passages to Support High Fuel Flows and Dampen Pressure Pulsations
- Runner Length and Tapered Cross-Section Engineered for Versatility Across a Range of LS7 Engine Configurations
- Modular Base Accepts Various Carbureted and EFI Tops
- Cost-Effective Alternative to Fabricated Sheet-Metal Intakes for High-Performance Applications Without Height Restrictions
- Port Size: 2.49” Height x 1.21” Width, Raised Rectangle LS7-Style Ports
- Standard LS3 Molded O-Ring Mounting Flange Gasket
- Throttle Body Flange Height: 8.42” From Engine Block Lifter Valley Cover Flange
- Total Height with 92mm EFI Plenum Top: 12.32” to Lifter Valley Cover Flange
- Runner Length: 6.29” with a Tapered Cross-Sectional Area from 4.67 in² to 2.84 in²
- Single Plane Manifold Type with Removable Top/Lid
- Fuel Rails Included; Fuel Injectors Not Included
- Vacuum Ports Included
- Specifically Fits 2014-2015 Camaro Z/28 with LS7 Engine
