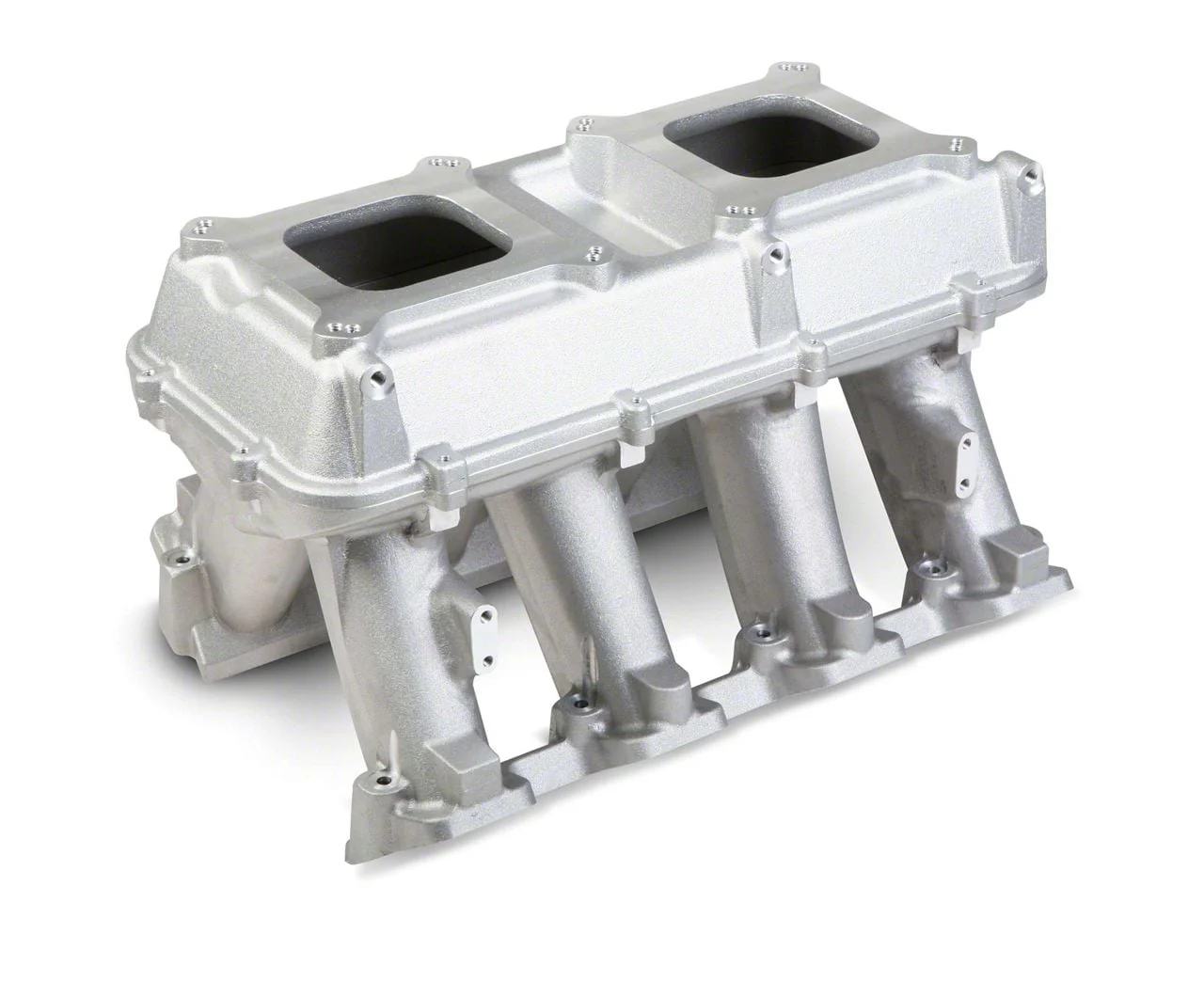

Holley Sideways and Inline Mount GM LS3/L92 Modular Carbureted Hi-Ram Intake Manifold (10-15 Camaro SS)

Description

High-Performance Intake Solution. The Holley Sideways and Inline Mount GM LS3/L92 Modular Carbureted Hi-Ram Intake Manifold is engineered to maximize airflow and performance on naturally aspirated and forced induction engines. It serves as a cost-effective alternative to fabricated sheet-metal intakes, making it ideal for high-RPM racing and performance builds. This intake is designed to deliver strong power potential up to and beyond 7000-8000 RPM.

Construction and Appearance. Constructed from durable cast aluminum, this intake manifold features a natural finish that highlights its robust design. The tapered runner shape and precise port sizing are engineered for optimal airflow efficiency. Its aggressive race-inspired styling enhances the visual appeal of muscle cars, sandrails, marine applications, and more.

Installation. Installation typically requires careful planning due to the intake’s height and racing design; modifications or additional clearance may be necessary depending on the vehicle and engine setup. The removable top/lid allows easier access to the runners and plenum for assembly and maintenance.

Warranty. This intake manifold comes with a manufacturer’s limited 90-day warranty providing coverage against defects in materials and workmanship.

Application. This intake manifold is intended for racing use on GM LS3/L92-style rectangle-port engines. It is not guaranteed to fit specific production vehicles without modification and is labeled for sale or use on racing use only vehicles.

Holley 300-113

CA Residents: WARNING: Cancer and Reproductive Harm

• Carbureted Hi-Ram Intake, 2 X 4150™ (Sideways And Inline Mounting)
• Legal For Sale Or Use On Racing Use Only Vehicles
• Cost-Effective Alternative To Fabricated Sheet-Metal For High-Performance Applications
• Designed For Engines Between 6.0 To 7.0+ Liter Range
• Suitable For Naturally Aspirated And Forced Induction Setups
• Cast Aluminum Construction
• Runner Length And Tapered Cross-Section Optimized For Various Engine Configurations
• Standard LS3 Molded O-Ring Mounting Flange Gasket
• Base Plenum Top Mounting Flange Height: 8.42 Inches
• Port Size: 2.49 Inches Height X 1.21 Inches Width
• Height To Lifter Valley Cover Flange: 11.08 Inches
• Runner Length: 6.50 Inches
• Tapered Runner Cross-Sectional Area: 4.25 To 2.77 Square Inches
• Single Plane Intake Manifold
• Vacuum Ports Included
• CNC Ported: No
• Fuel System Type: Carbureted
• Dual 4150 Square Bore Carburetor Flanges
• Removable Top/Lid
• Throttle Body Bore Diameter: 3.6 Inches
• Fuel Injectors, Fuel Rails, And Carburetor Studs Not Included
• Manufacturer’s Limited 90 Day Warranty
