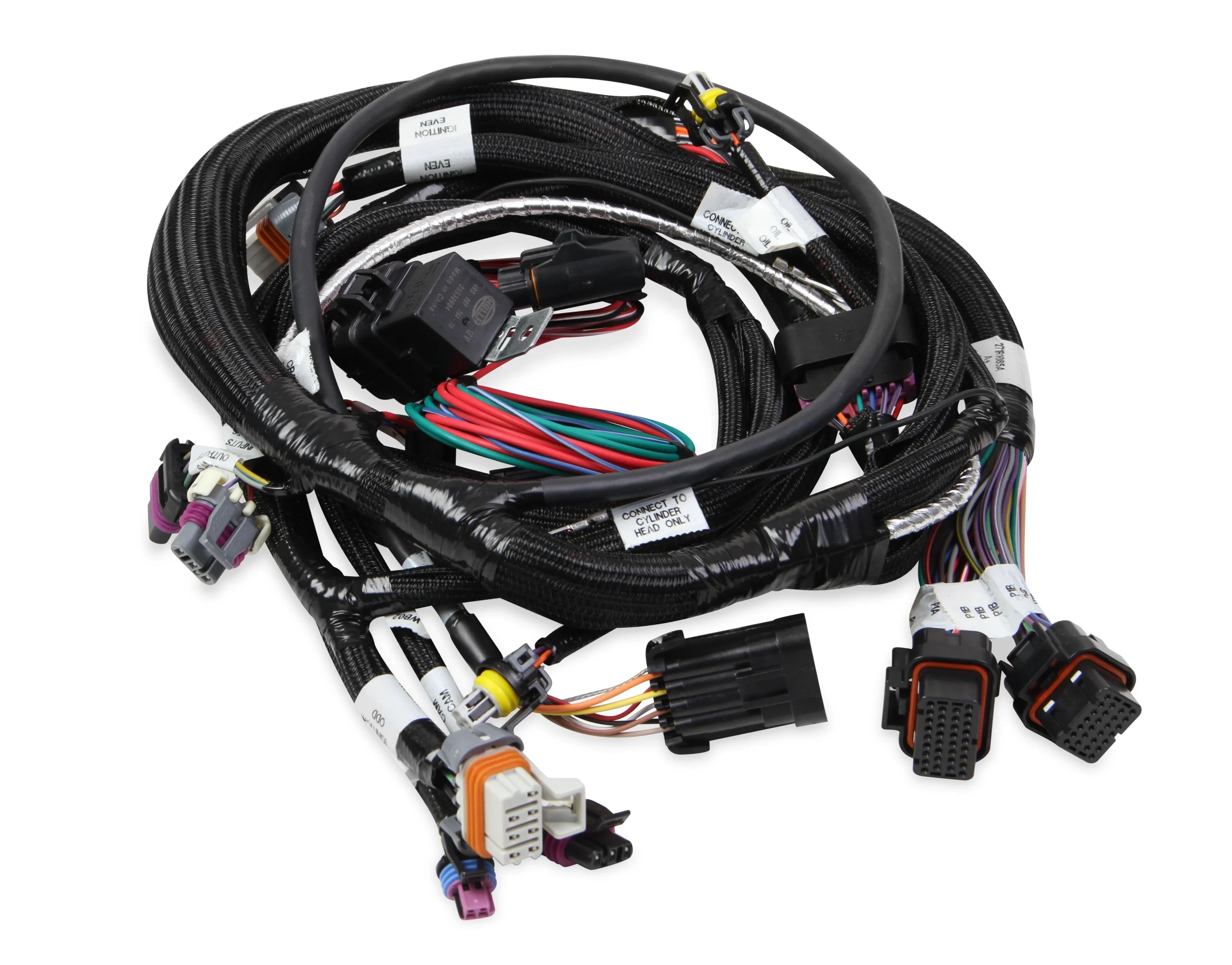

Main Engine Harness for 58X LS w/TBI

Description

MAIN ENGINE HARNESS FOR 58X LS W/TBI
Main Harness for us with 24x/1x Gen 3 LS with Terminator Throttle Body Fuel Injection
Overview
Main Engine harness intended for use with Terminator X, X Max, Terminator, HP, and Dominator ECUs when using a Terminator or Terminator Stealth style Throttle Body Injection unit on a Gen 3 24X LS engine. This harness has crank and cam sensor plugs for Gen 3 24X LS engines as well as Odd/Even LS coil harness plugs and a bulkhead connector for the 534-227, 534-225 and similar throttle body injection units.
Only compatible with Terminator TBI throttle bodies, NOT for Multi-Port Fuel Injection
Only compatible with Terminator TBI throttle bodies, NOT for Multi-Port Fuel Injection
