Description

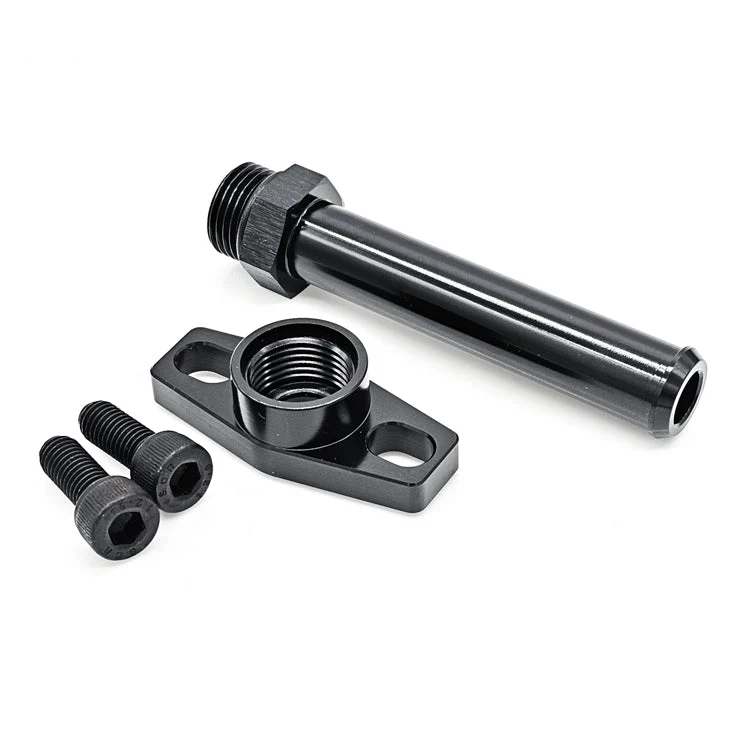

The Ace Race Parts brand of Oil Drain Flanges are offered in a wide range of configurations. This particular Oil Drain Flange features an integrated 5/8″ Male Hose Barb Extension Outlet and an O-Ring Style Seating Surface to ensure a leak-free connection at all times. This particular oil drain flanges features a -8AN Female ORB Flange with a 5/8″ Male Barb Extension Fitting, measuring 3.500″ Long. Our oil drain flanges are precision CNC machined from solid 6061-T6 Aluminum billet and features a black hard anodized finish that will stand up to the harshest conditions.
FEATURES
- Removable -8AN Male ORB x 5/8″ Barb Extension Outlet (3.500″ long)
- O-Ring Style Seating Surface
- Slotted Bolt Holes with a Bolt Circle range of 1.500″ to 1.750″
- Precision CNC Machined
- 6061-T6 Aluminum, Black Hard Anodized Finish
- Two M8 x 1.25 Button Head Cap Screws
COMPATIBILITY
- Garrett: G25, G30, G35, GTX28, GTX29, GTX30, GTX35, GT15, GT20, GT22, GT25, GT28, GT30, GT35
- BorgWarner: EFR B1 Frame (6258, 6758, 7163), EFR B2 Frame (7064, 7670, 8374, 8474, 9174, 9274, 9180, 9280)
