RAM Mounts X-Grip Large Phone Mount with Brake/Clutch Reservoir Base (Universal; Some Adaptation May Be Required)

Description

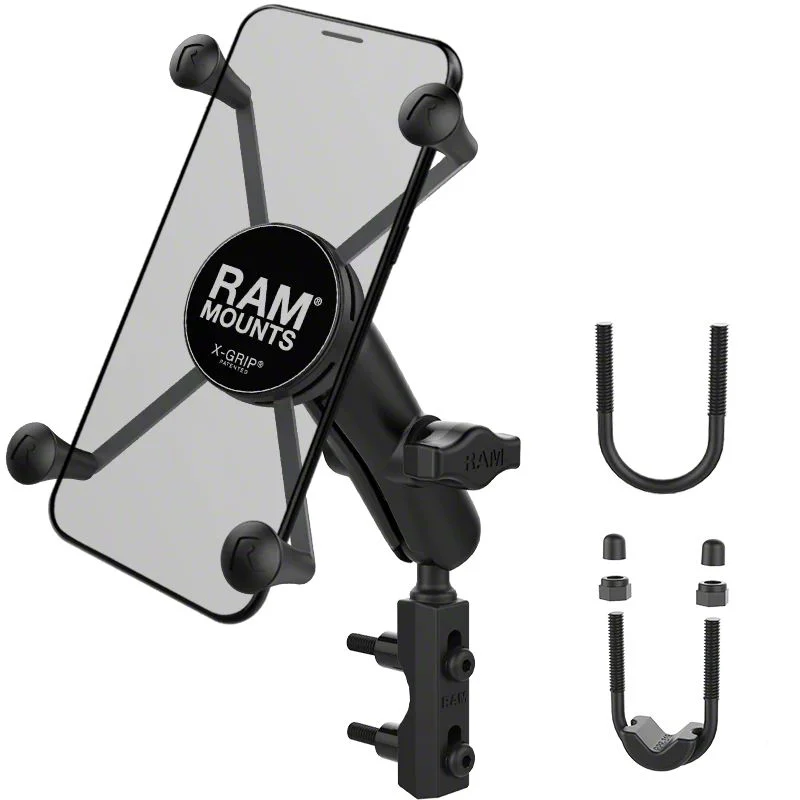

Description. The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5″ to 1.25″ in diameter, double socket arm and universal X-Grip large phone/phablet holder. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM Mounts RAM-B-174-UN10

CA Residents: WARNING: Cancer and Reproductive Harm

• Consists Of Hardware For Mounting To Either Brake/Clutch Reservoirs And Rails That Are 0.5″ To 1.25″ In Diameter
• Includes Double Socket Arm And Universal X-Grip® Large Phone/Phablet Holder
• Features A 1″ Diameter Patented Rubber Ball And Socket System With Adjustment Points At Both Ends Of The Socket Arm
• Allows Adjustment Of X-Grip® Mount To Optimum Viewing Position With Twist Of Arm Knob
• Mounting Hardware Includes Standard And Metric Mounting Bolts
• X-Grip® Cradle Has Four Leg Design For Holding Power Without Hiding Phone Behind Foam Pads And Plastic
• Spring Loaded X-Grip® Cradle Expands And Contracts For A Perfect Custom Fit
• Includes Device Tether Recommended For Outdoor Applications
• Holder Dimensions: Width Range 1.75″ To 4.5″, Depth Range .875″ Max
• Clamp Range: .5″ To 1.25″ Diameter
• Socket To Socket Length: 3″
• B Size Ball: 1″
• Weight Capacity: Standard Use 2 Lbs, Heavy-Duty Use 1 Lb
• Made Of Marine-Grade Aluminum, High Strength Composite, Stainless Steel
• Packaged In A Retail Box
• Weight: 1.2 Lb
• Exposure To Vibrations Such As From High-Powered Motorcycle Engines Might Impact iPhone Cameras
• Fits Universal; Some Adaptation May Be Required
