Description

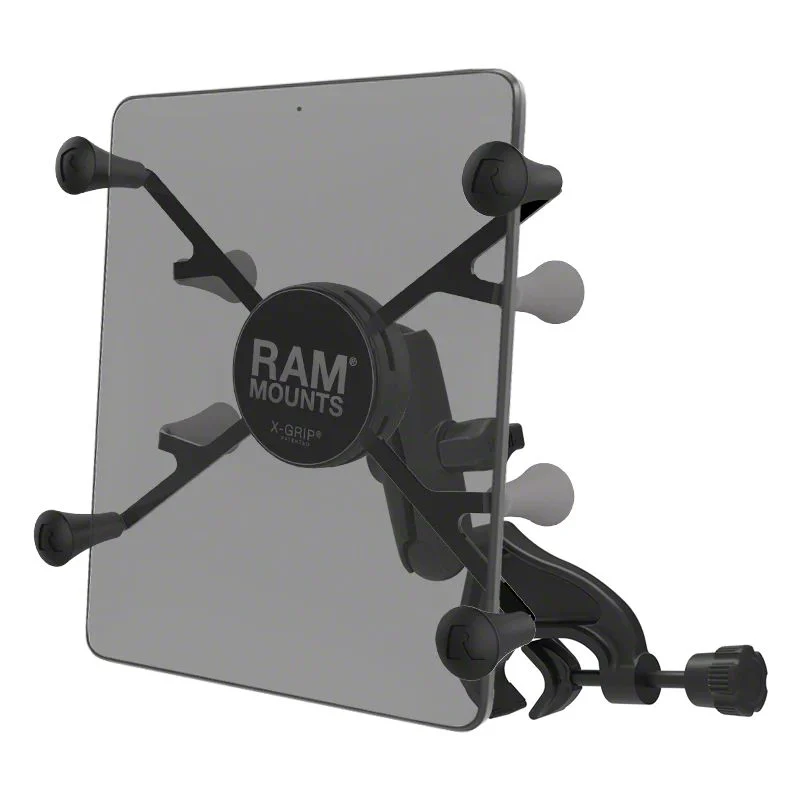

Description. The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip cradle for 7″-8″ tablets. The yoke clamp base will fit rails from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1″ diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your 7″ tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
RAM Mounts RAM-B-121-UN8U
CA Residents: WARNING: Cancer and Reproductive Harm
- Yoke Clamp Base Fits Rails From 0.625 To 1.25 Inches
- Includes Double Socket Arm System
- Features Universal Spring Loaded X-Grip Cradle For 7 To 8 Inch Tablets
- 1 Inch Diameter Patented Rubber Ball And Socket System
- Adjustment Points At Both Ends Of The Socket Arm With Twist Knob
- Spring Loaded X-Grip Cradle Expands And Contracts For Custom Fit
- Extra Easy Access Grip Knobs On Back Of Cradle For Quick Release
- Device Tether Included And Recommended For Outdoor Use
- Holder Dimensions Width Range 2.5 To 5.75 Inches
- Holder Depth Range Maximum 0.875 Inches
- Clamp Range Of 0.625 To 1.25 Inches
- Socket To Socket Length Of 3 Inches
- Ball Size B Size (1 Inch)
- Weight Capacity Standard Use 2 Pounds, Heavy-Duty Use 1 Pound
- Constructed From Marine-Grade Aluminum And High Strength Composite
- Lightweight At Just 0.94 Pounds
- Hardware Included: Optional Tether And Glue Tube For Rubber Caps
- Fits Universal; Some Adaptation May Be Required
