RAM Mounts X-Grip Mount with Yoke Clamp Base for 9 to 10-Inch Tablets (Universal; Some Adaptation May Be Required)

Description

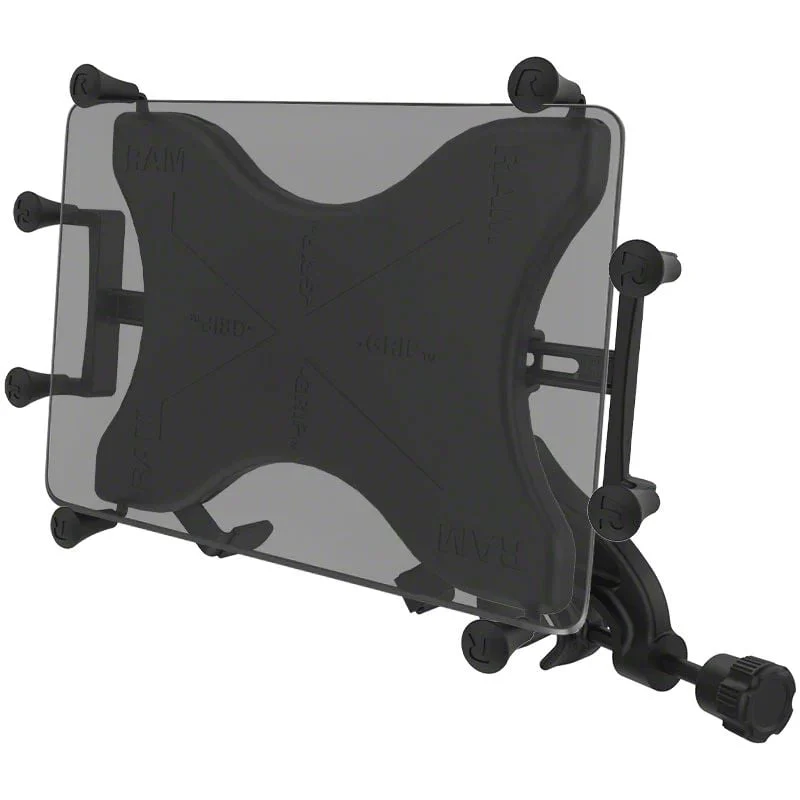

Description. The RAM-B-121-UN9U consists of a yoke clamp base, double socket arm, round adapter base and universal X-Grip III clamping cradle for 10″ tablets. The RAM yoke clamp mount will fit rails from 0.625″ to a maximum of 1.25″. The 1″ rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1″ diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip III clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip III clamping cradle expands and contracts for perfect fit of most 10″ tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip III.

RAM Mounts RAM-B-121-UN9U

CA Residents: WARNING: Cancer and Reproductive Harm

• Yoke Clamp Base
• Double Socket Arm
• Round Adapter Base
• Universal X-Grip® Clamping Cradle For 9″-11″ Tablets
• Fits Rails From 0.625″ To 1.25″
• 1″ Diameter Rubber Ball System With Adjustment Points On Double Socket Arm
• Composite Spring Loaded Cradle With Expandable Grip Arms And Bottom Support Keeper
• Extra Easy Access Grip Knobs For Quick Tablet Release
• Expands And Contracts For Tablets With Or Without Sleeves
• Max Height: 10.25″ (Using Optional Side Supports)
• Width Range: 6.25″ – 8.1″
• Max Depth: 0.875″
• Clamp Range: 0.625″ – 1.25″
• Socket-To-Socket Length: 3″
• Ball Size: B Size (1″)
• Weight Capacity: Standard Use 2 lbs, Heavy-Duty Use 1 lb
• Marine-Grade Aluminum And High Strength Composite Materials
• Packaged In Poly Bag
• Weighs 1.83 lbs
• Fits Universal; Some Adaptation May Be Required. Check Dimension Compatibility With Tablet And Case Thickness
