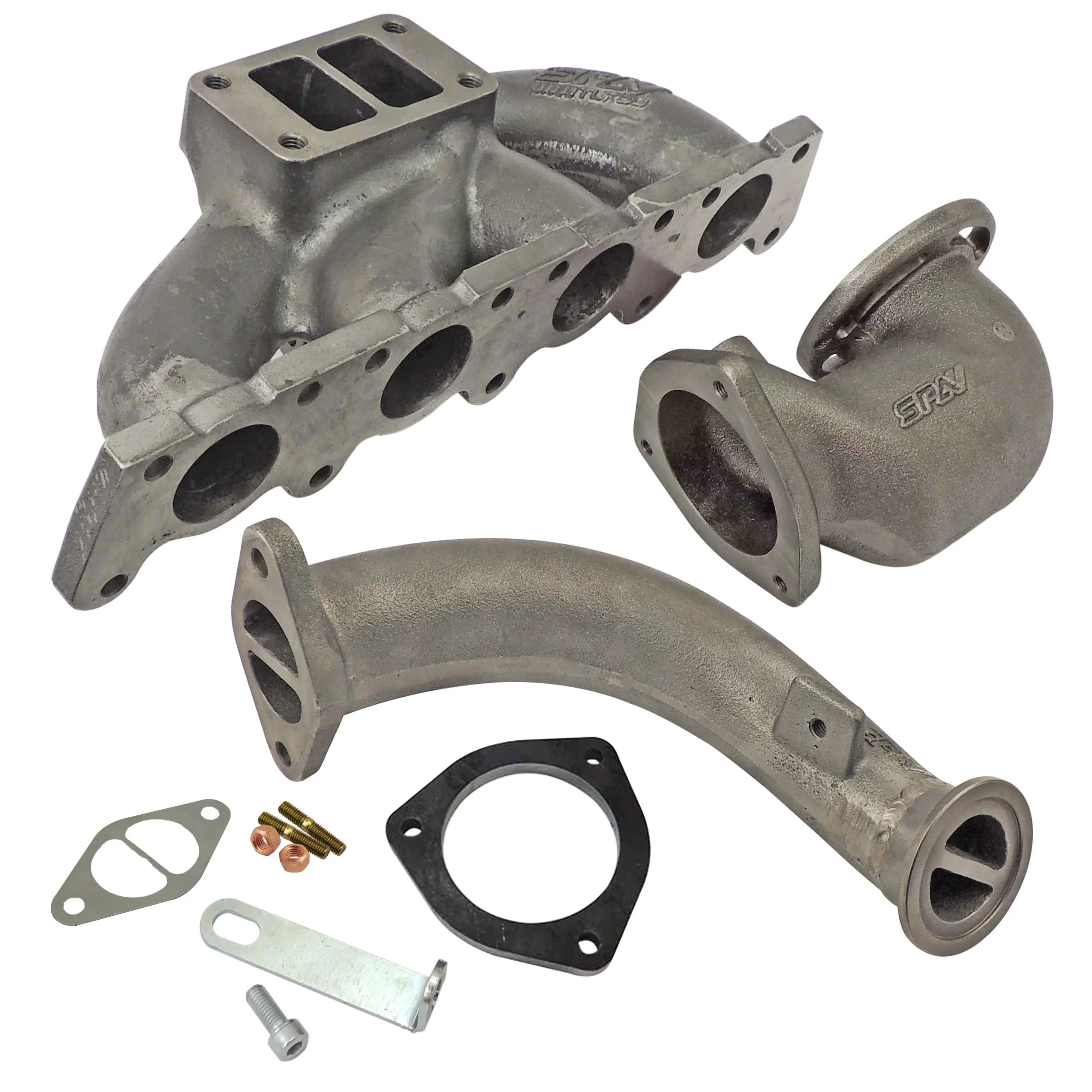

VW MKIV GTI T3 Twin Scroll Top Mount Turbo Manifold V-Band – EVOLUTION

Description

• The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, with 1.8T 20V specialists, a new project full of improvements emerged.

• Better performance, with optimized flow thanks to redesigned runners.

• ‚ Perfect position of the wastegate, allowing the application of large valves, facilitating boost control and possible maintenance.

• Ideal turbocharger positioning for building a pressurization with smooth curves and accommodates turbines as big as GT35 and similar.

• Includes cast initial exhaust outlet and 3¢â‚¬ flange for making the rest of the exhaust, facilitating application.

• Application: VW/Audi 1.8T 20V transverse

• Turbocharger mount: Top mount

• Turbine housing flange: T3

• Wastegate flange: V-Band 44/45mm

• Runners internal diameter: 42mm

• Material: Cast iron

• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25
